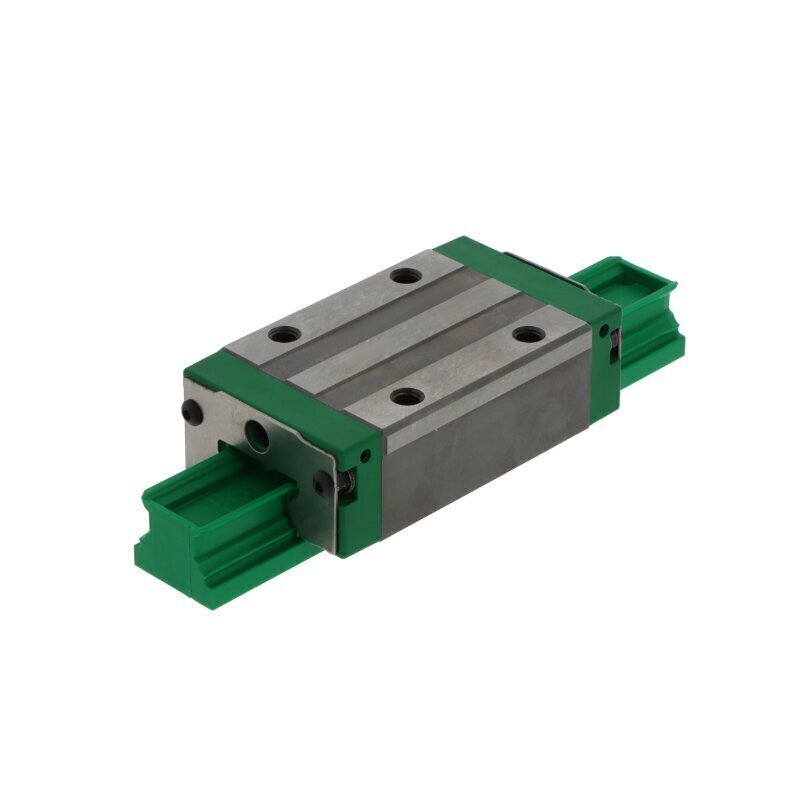

KWVE20-B-SN-V2-G3 INA Carriage
The KWVE20-B-SN-V2-G3 INA Carriage is a precision linear motion component engineered for industrial applications requiring compact, space-efficient design combined with reliable smooth linear guidance. This four-row ball carriage delivers balanced performance in a slimline and low profile configuration, making it ideal for machinery and automation systems with dimensional constraints.
Key Specifications:
- Design: Block carriage configuration for secure, rigid mounting in various orientations
- Series: 20 series providing excellent performance and load capacity for mid-range industrial applications
- Rolling Elements: Ball type in four-row arrangement for superior load distribution and smooth operation
- Preload: Medium preload for optimized load handling with controlled friction levels
- Tolerance Class: G3 providing high precision for accurate positioning and reliable performance
- Material: Steel with plastic components for durability, strength, and weight efficiency
- Lubrication: Relubricatable design for extended service life and flexible maintenance schedules
- Sealing: End seals and sealing strips for comprehensive protection against contamination and dust ingress
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
- Version: Slimline and low design for space-constrained installations and compact machinery layouts
Applications:
Ideal for use in compact automated machinery, space-limited CNC equipment, industrial automation systems, and applications requiring precise linear motion with minimal installation footprint. The slimline and low design combined with four-row ball configuration makes it particularly suitable for applications requiring compact profiles, reliable medium-load performance, and accurate positioning in restricted space environments. Excellent for machine tools, production machinery, and automation equipment where vertical or horizontal space is at a premium.
