Quick Code: BB-508969

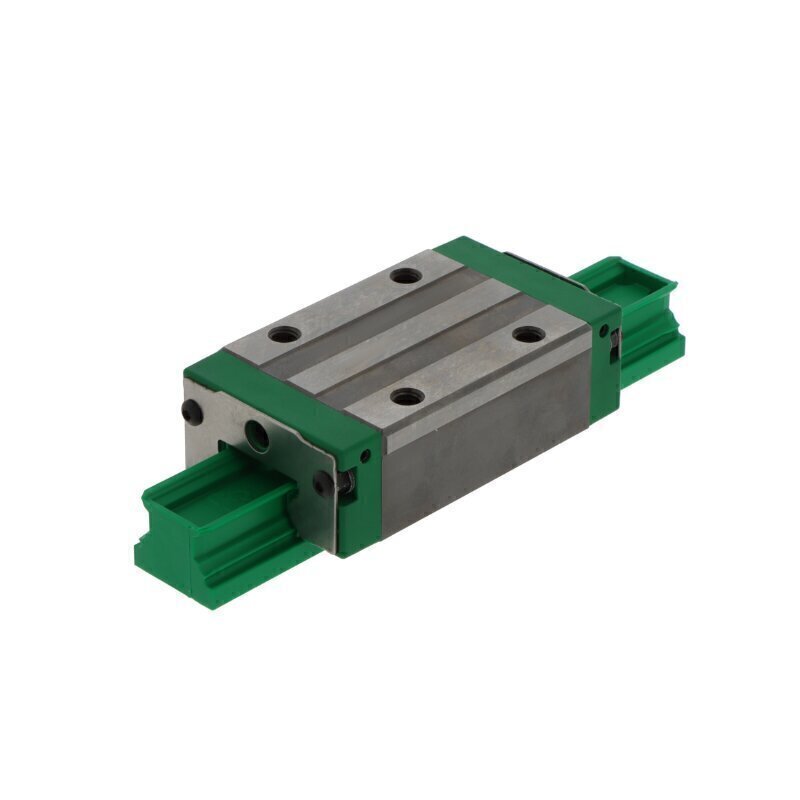

KWVE20-B-SN-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
KWVE20BSNV1G3
Additional Reference:
10099615
Quick Order Code
BB-508969
Product Description
The KWVE20-B-SN-V1-G3 INA Carriage is a precision-engineered linear motion component designed for applications requiring compact, smooth linear movement with reliable performance. This block carriage from INA's 20 series combines advanced engineering with practical design features to deliver consistent accuracy and durability.
Key Specifications:
- Design: Block carriage with slimline and low profile configuration
- Rolling Elements: Four-row ball bearing system
- Preload: Light preload for optimal load distribution and smooth operation
- Material Construction: Steel with plastic components for durability and corrosion resistance
- Tolerance Class: G3 for high precision linear guidance
- Sealing: End seals and sealing strips for enhanced protection
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain configuration
Ideal Applications:
The KWVE20-B-SN-V1-G3 is well-suited for industrial applications where space is limited and precision linear motion is essential, including:
- Compact automation systems
- Precision positioning equipment
- Medical device assemblies
- Electronics manufacturing
- Laboratory instrumentation
This carriage delivers the precision and reliability demanded by modern industrial applications while maintaining a compact footprint, making it an excellent choice for space-constrained installations requiring smooth, accurate linear guidance.
