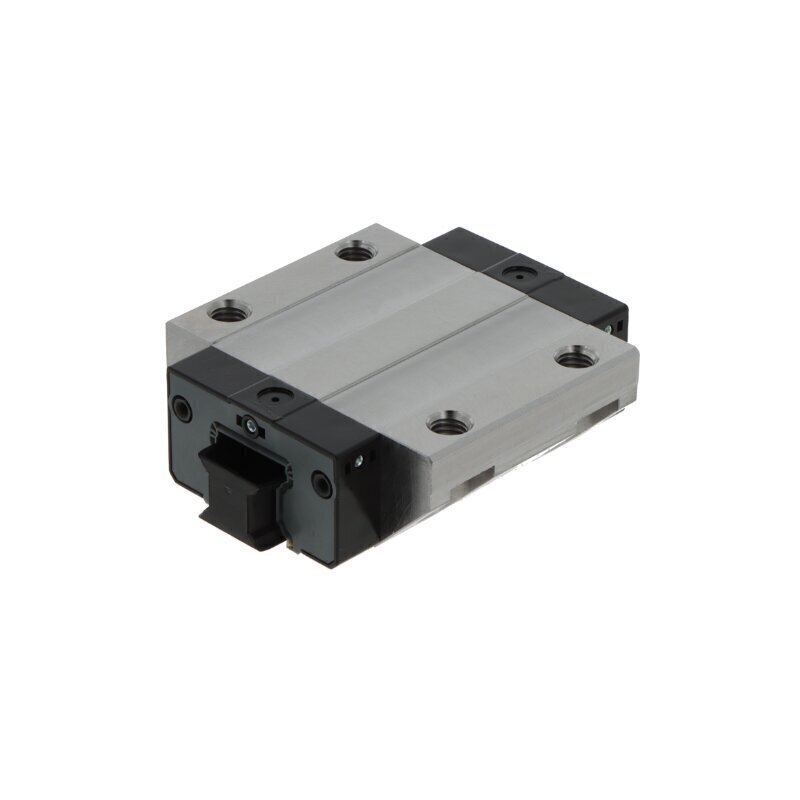

KWVE20-B-N-V1-G3 INA Carriage
Also Try
Hiwin Carriages
Bosch Rexroth Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
KWVE20BNV1G3
Additional Reference:
10099725
Quick Order Code
BB-509004
Product Description
The KWVE20-B-N-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate movement with reliable performance. This flange carriage delivers exceptional versatility for demanding industrial environments.
Key Specifications:
- Design: Flange carriage for flexible mounting options
- Series: 20 series with moderate load capacity
- Rolling Elements: Ball type in four-row configuration for smooth, consistent motion
- Preload: Light preload for balanced performance between rigidity and friction
- Tolerance Class: G3 for reliable precision and repeatability
- Material Construction: Steel and plastic components for durability and corrosion resistance
- Version: Low design profile for space-constrained installations
Performance Features:
- Lubrication: Relubricatable design for extended service life and reduced maintenance intervals
- Sealing: End seals and sealing strips provide protection against contamination and environmental ingress
- Temperature Range: -10 to +80°C, suitable for both indoor and controlled industrial environments
- Ball Chain: Without ball chain configuration for simplified design integration
Ideal Applications:
This carriage is well-suited for industrial automation, assembly equipment, material handling systems, and precision positioning applications where smooth linear motion, moderate load capacity, and space efficiency are critical requirements.
