Quick Code: BB-509003

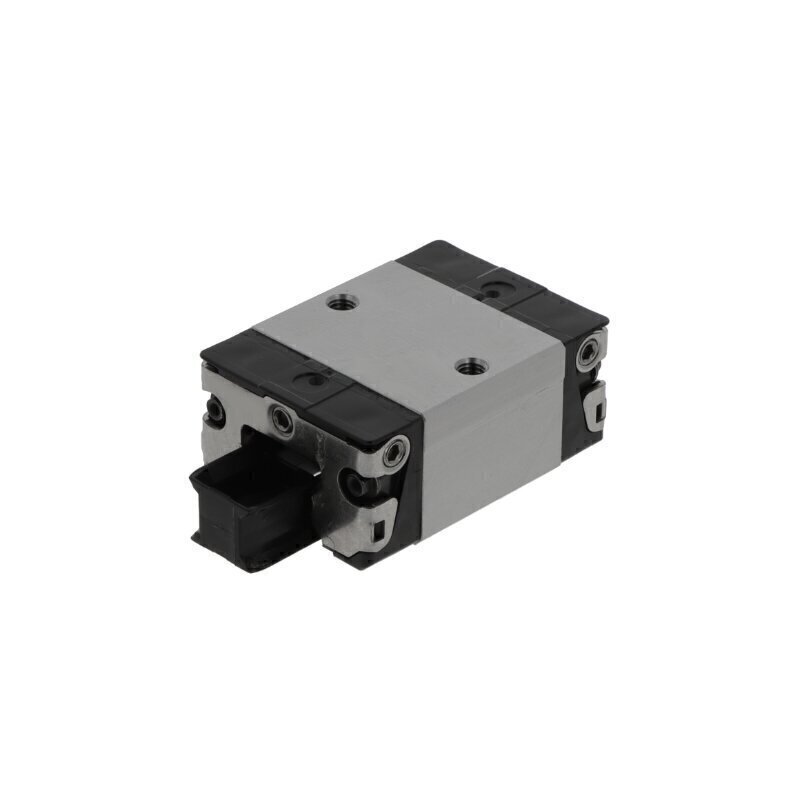

KWVE20-B-ESC-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Upgraded short, slim type
Reference
KWVE20BESCV1G3
Additional Reference:
10099724
Quick Order Code
BB-509003
Product Description
The KWVE20-B-ESC-V1-G3 INA Carriage is a precision-engineered linear motion component designed for applications requiring compact, smooth, and accurate linear movement. This block carriage combines advanced engineering with practical features to deliver reliable performance in demanding industrial environments.
Key Specifications:
- Design: Block carriage with upgraded short, slim type configuration
- Series: 20 series
- Rolling Elements: Ball type in four-row configuration
- Preload: Light preload for reduced friction and smooth operation
- Material: Steel body with plastic components for optimal durability and weight efficiency
- Tolerance Class: G3 for high precision applications
- Sealing: End seals and sealing strips for enhanced protection against contaminants
- Lubrication: Relubricatable design for extended service life and reduced maintenance intervals
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Applications:
This carriage is ideal for space-constrained linear motion systems where compactness is essential without compromising load capacity or precision. It suits applications including:
- Automated machinery requiring precise linear positioning
- Industrial automation systems with limited installation space
- Medical and laboratory equipment requiring smooth, reliable motion
- Packaging and material handling systems
- Machine tool applications demanding high precision
The combination of four-row ball elements and light preload ensures optimal performance, while the relubricatable maintenance design minimizes downtime in production environments.
