Quick Code: BB-509230

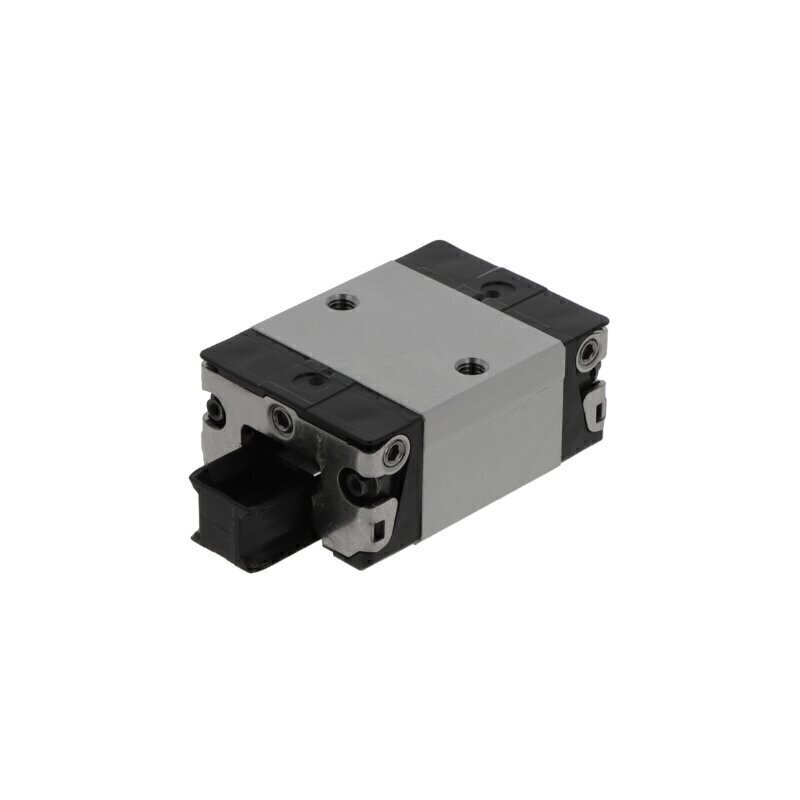

KWVE20-B-ESC-V0-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Without preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Upgraded short, slim type
Reference
KWVE20BESCV0G3
Additional Reference:
10101373
Quick Order Code
BB-509230
Product Description
The KWVE20-B-ESC-V0-G3 INA Carriage is a precision linear motion component engineered for compact industrial applications requiring smooth, accurate linear movement in space-constrained environments. This block carriage combines advanced engineering with a compact design to deliver reliable performance in demanding applications where footprint is a critical consideration.
Key Features:
- Series 20 - compact carriage suitable for applications with moderate load requirements
- Four-row ball configuration - provides excellent load distribution and stability
- Upgraded short, slim type design - minimized profile for space-constrained installations while maintaining performance
- Block carriage configuration - versatile mounting options for diverse industrial setups
- Without preload - optimizes ease of movement and reduces friction for smooth operation
- Steel and plastic construction - durable materials engineered for reliable long-term performance
- End seals and sealing strips - protects rolling elements from contaminants, dust, and debris to extend service life
- Relubricatable design - allows for convenient maintenance and re-greasing throughout operational life
- G3 tolerance class - precise dimensional accuracy for demanding positioning applications
- Operating temperature range: -10 to +80°C - suitable for diverse industrial environments
Applications:
Ideal for compact automation systems, precision machinery with space limitations, material handling equipment, industrial positioning systems, and OEM applications where accurate linear motion, compact design, and reliable performance are essential requirements.
Reference: KWVE20BESCV0G3
