Quick Code: BB-509228

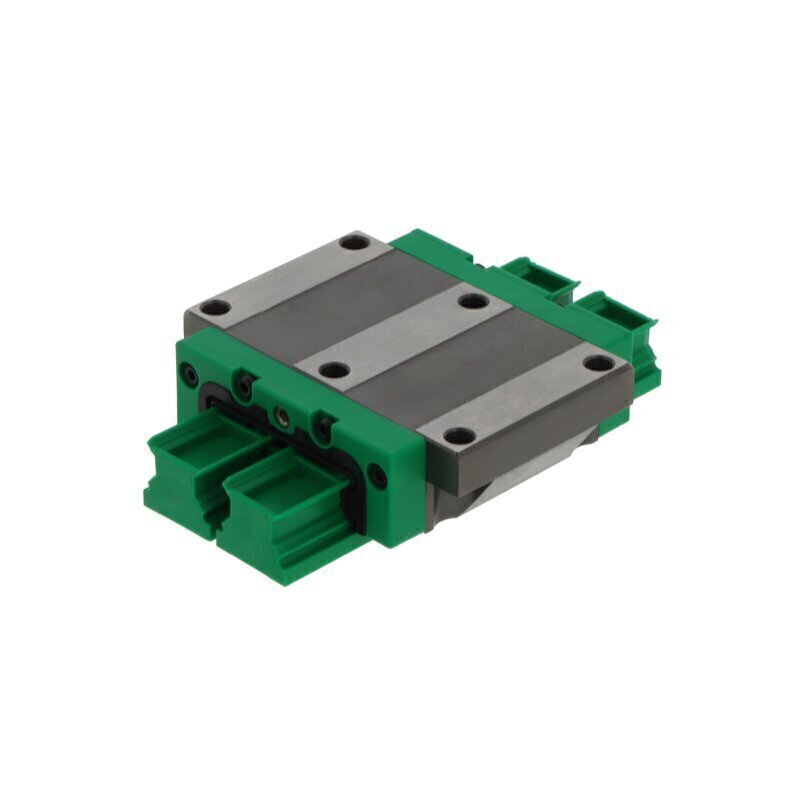

KWVE15-W-V2-G3 INA Carriage
The KWVE15-W-V2-G3 INA Carriage is a precision-engineered flange carriage from INA's comprehensive linear motion range, specifically designed for applications requiring reliable, smooth linear movement with medium preload performance. This four-row ball carriage combines robust engineering with professional-grade characteristics, making it an excellent choice for systems demanding high precision with a wide design footprint for enhanced stability and load distribution.
Key Features:
- Brand: INA – trusted leader in linear motion technology
- Design: Flange carriage – optimized for direct mounting to stationary components
- Series: 15 series – compact yet capable load-bearing capacity
- Rolling Elements: Four-row ball configuration for smooth, precise linear motion and excellent load distribution
- Preload: Medium preload – balances precision with operational smoothness for exacting applications
- Material: Steel and plastic construction – combines durability with lightweight design benefits
- Tolerance Class: G3 – high precision rating suitable for demanding positioning requirements
- Lubrication: Relubricatable design via lubrication nipple – allows for scheduled maintenance and extended operational life in demanding conditions
- Sealing: End seals and sealing strips provide comprehensive contamination protection for reliable long-term performance
- Temperature Range: Reliable operation from -10 to +80°C, suitable for diverse industrial environments
- Ball Chain: Without ball chain configuration – streamlined design for flexible installation
- Version: Wide design – enhanced stability and load capacity for specialized applications
Applications:
The KWVE15-W-V2-G3 is ideal for:
- Precision industrial automation equipment
- CNC machinery and machine tool applications
- Material handling systems requiring reliable linear guidance
- Packaging and processing equipment
- Manufacturing applications where medium preload precision and consistent linear motion performance are essential
- Systems requiring a wider carriage profile for enhanced stability and load distribution
As part of our extensive stockist inventory of over 290 INA linear carriages, the KWVE15-W-V2-G3 delivers the precision, durability, and reliability you expect from INA's proven linear bearing technology, with the added benefit of a wide design for specialized mounting and operational requirements.
