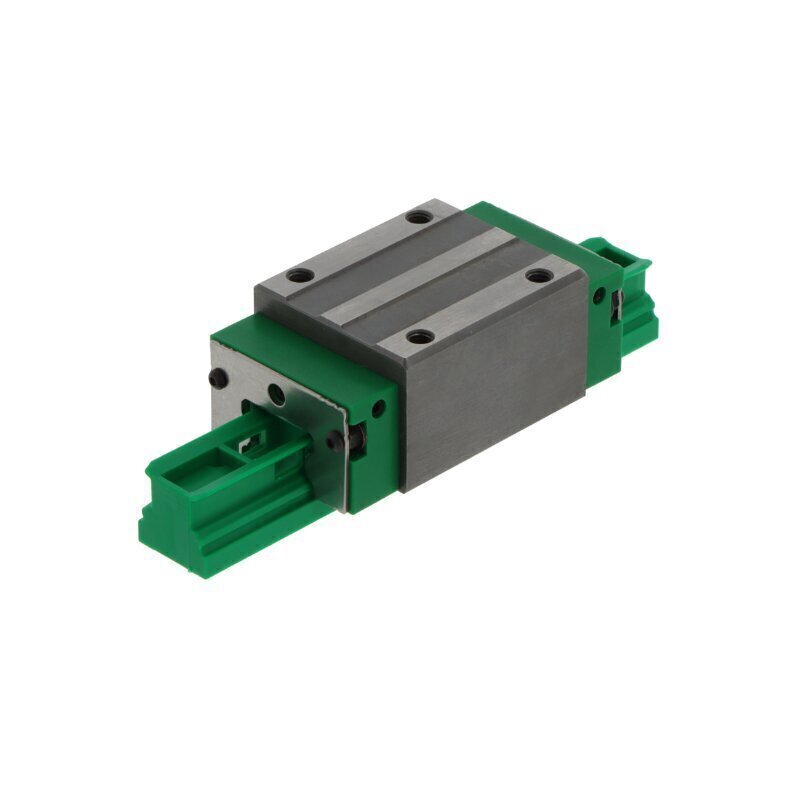

KWVE15-B-H-V1-G2 INA Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
15 series
Temperature range
-10 to +80 °C
Tolerance class
G2
Type of rolling elements
Balls
Version
High design
Reference
KWVE15BHV1G2
Additional Reference:
10101167
Quick Order Code
BB-509218
Product Description
The KWVE15-B-H-V1-G2 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate linear movement in a compact footprint. This block carriage combines reliable performance with a high design profile, making it ideal for demanding industrial automation systems where vertical space is available and consistent precision is critical.
Key Specifications:
- Design: Block carriage with high design for vertical space optimization
- Series: 15 series
- Rolling Elements: Ball type with four-row configuration
- Material: Steel with plastic components for durability and reduced weight
- Preload: Light preload for balanced load capacity and smooth operation
- Ball Chain: Without ball chain
- Lubrication: Relubricatable via lubrication nipple for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for protection against contamination
- Tolerance Class: G2 for reliable precision performance
- Operating Temperature Range: -10 to +80°C
Typical Applications:
This carriage is well-suited for:
- Linear motion systems requiring high-profile installation in vertical applications
- Light to moderate load industrial machinery and assembly systems
- Precision positioning and automation equipment
- Manufacturing and material handling applications with adequate vertical clearance
- Laboratory and testing equipment requiring smooth, reliable linear motion
- Compact horizontal systems where a taller carriage profile is acceptable
As part of our extensive INA carriage portfolio, this component delivers the precision engineering and reliability expected from INA products in a configuration optimized for applications requiring high-profile installation with excellent load distribution and operational consistency.
