Quick Code: BB-509207

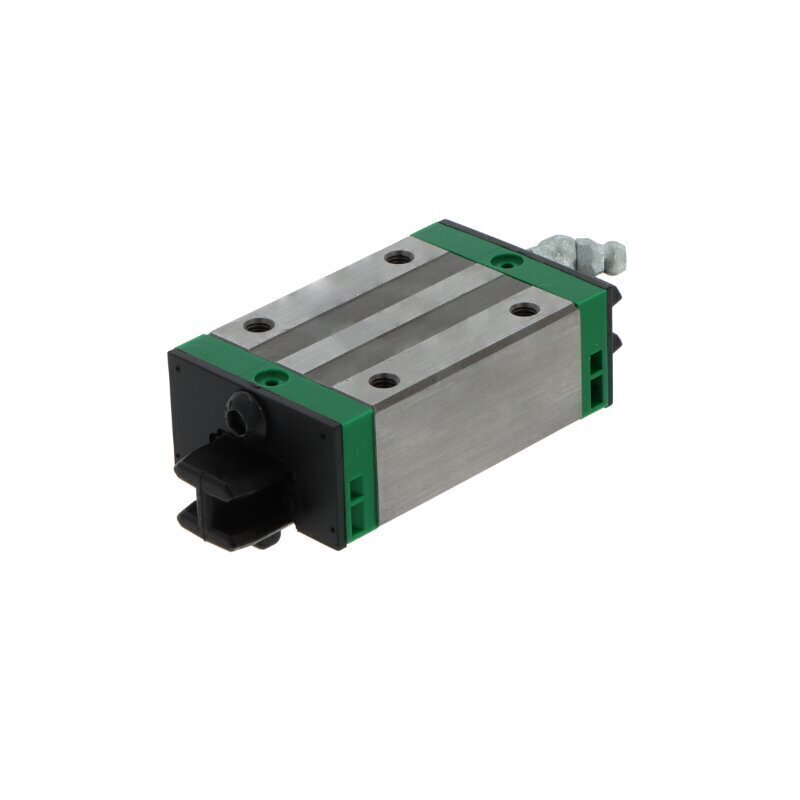

KWSE30-H-V2-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High design
Reference
KWSE30HV2G3
Additional Reference:
10100828
Quick Order Code
BB-509207
Product Description
The KWSE30-H-V2-G3 INA Carriage is a precision linear motion component engineered for industrial applications demanding robust, smooth linear movement with enhanced load capacity. This high-design block carriage combines advanced engineering with practical features to deliver consistent performance in demanding environments.
Key Specifications:
- Series: 30 series
- Design Type: Block carriage with high design configuration
- Rolling Elements: Ball type, six-row configuration
- Preload: Medium preload for enhanced load distribution and reduced play
- Material Composition: Steel with plastic components for optimal durability and lightweight performance
- Ball Chain: Without ball chain
- Tolerance Class: G3 for precise dimensional accuracy
- Operating Temperature Range: -10 to +80°C
- Lubrication Type: Relubricatable for extended service life and maintenance flexibility
- Sealing Protection: End seals and sealing strips for reliable contamination protection
- Version: High design configuration for increased load capacity
Ideal Applications:
The KWSE30-H-V2-G3 is well-suited for heavy-duty industrial automation systems, manufacturing equipment, precision machinery, and applications where higher load capacity, smooth operation, and accessibility for maintenance are essential requirements. The high-design configuration makes it particularly suitable for applications requiring enhanced rigidity and load-bearing capability.
Brand: INA
