Quick Code: BB-509206

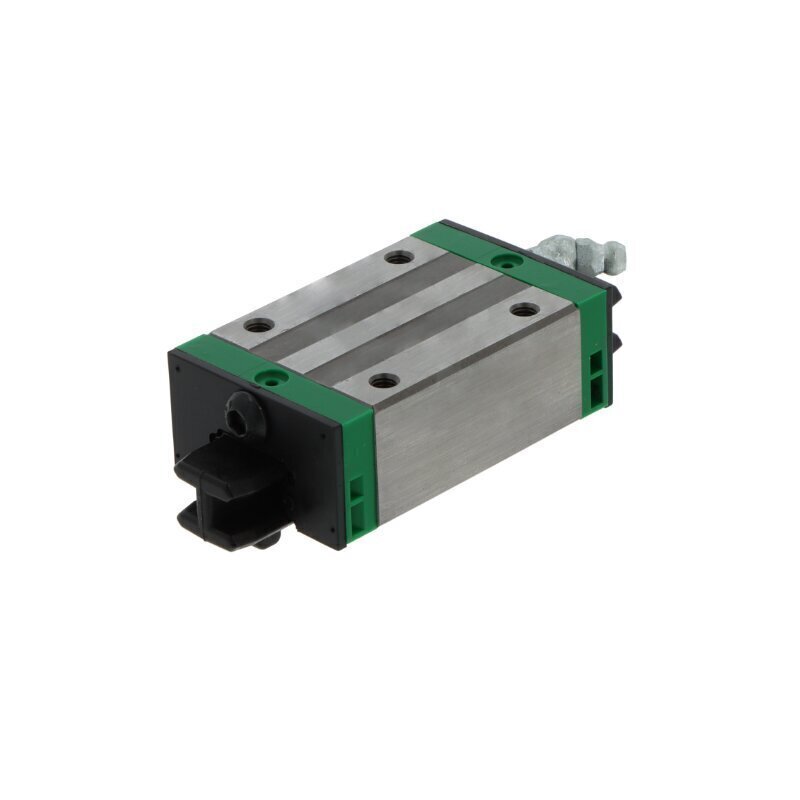

KWSE30-H-V2-G2 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G2
Type of rolling elements
Balls
Version
High design
Reference
KWSE30HV2G2
Additional Reference:
10100824
Quick Order Code
BB-509206
Product Description
The KWSE30-H-V2-G2 INA Carriage is a precision-engineered linear motion component from INA's 30 series, specifically designed for demanding industrial applications requiring smooth, accurate linear movement with enhanced load capacity.
Key Specifications:
- Design: Block carriage with high design configuration
- Rolling Elements: Ball type in six-row configuration
- Preload: Medium preload for optimal performance and rigidity
- Material: Steel with plastic components for durability and corrosion resistance
- Tolerance Class: G2 for high-precision applications
- Sealing: End seals and sealing strips for reliable protection
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Operating Temperature: -10 to +80°C
- Ball Chain: Without ball chain configuration
Applications:
The KWSE30-H-V2-G2 is ideal for:
- Heavy-load linear motion systems requiring superior load-carrying capacity
- Precision manufacturing and automation equipment
- Industrial machinery requiring medium preload and high rigidity
- Applications demanding reliable performance across moderate temperature ranges
- Systems requiring periodic maintenance and relubrication
With its six-row ball configuration and high design structure, this carriage delivers exceptional performance for applications where precision, durability, and consistent linear motion are critical to operational success.
