Quick Code: BB-509142

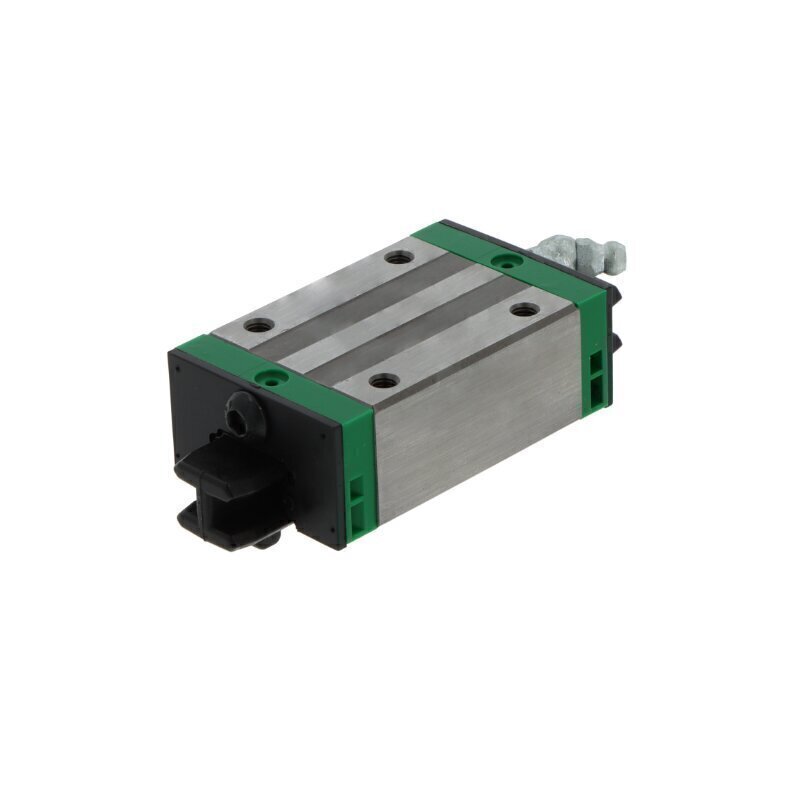

KWSE30-H-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High design
Reference
KWSE30HV1G3
Additional Reference:
10099919
Quick Order Code
BB-509142
Product Description
The KWSE30-H-V1-G3 INA Carriage is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate linear movement. This high-design block carriage delivers exceptional performance in systems where reliable linear guidance is critical.
Key Specifications:
- Series: 30 series
- Design: Block carriage, High design
- Rolling Elements: Six-row ball bearing configuration
- Preload: Light preload for optimized load distribution
- Material: Steel with plastic components for durability and reduced weight
- Tolerance Class: G3 for high precision applications
- Sealing: End seals and sealing strips for enhanced protection
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Ball Chain: Without ball chain configuration
- Operating Temperature Range: -10 to +80°C
Applications:
The KWSE30-H-V1-G3 is ideal for:
- High-speed industrial automation systems
- Precision positioning equipment
- Manufacturing machinery requiring reliable linear guidance
- Systems operating in temperature-controlled environments
With its robust six-row ball configuration and light preload, this carriage provides excellent load capacity and accuracy while maintaining smooth operation. The relubricatable maintenance feature ensures optimal performance throughout its operational life.
