Quick Code: BB-509205

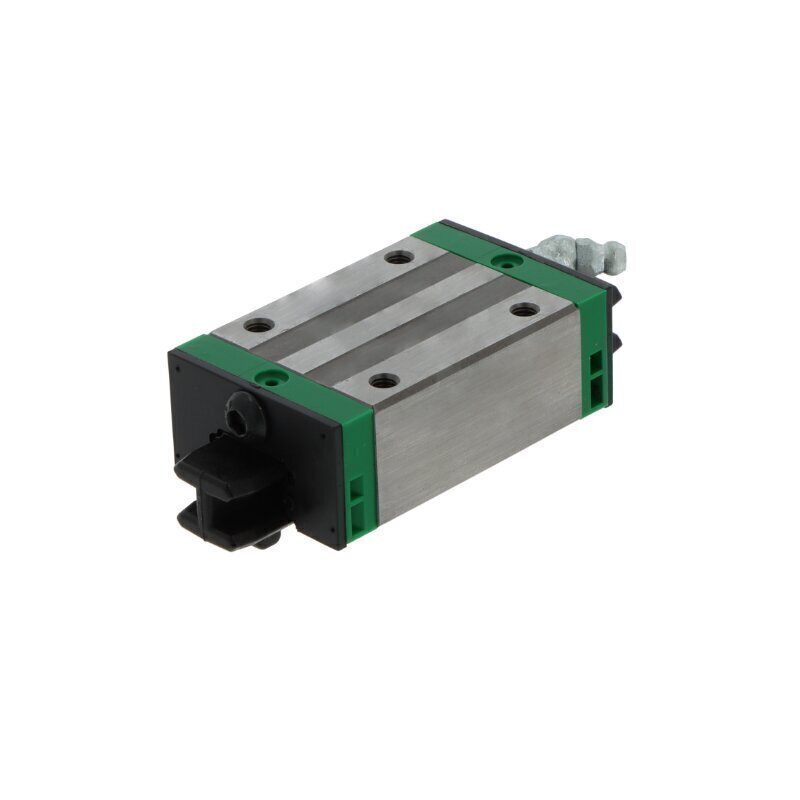

KWSE30-H-V1-G2 INA Carriage
The KWSE30-H-V1-G2 INA Carriage is a precision-engineered block carriage designed for demanding linear motion applications requiring smooth, accurate, and reliable performance. This six-row ball carriage combines robust construction with versatile functionality and a high design profile, making it an ideal choice for industrial automation, machinery systems, and equipment requiring consistent linear movement with enhanced load capacity.
Key Specifications:
- Design: Block carriage with high design configuration for superior load distribution and stability
- Rolling Elements: Ball type in six-row arrangement for exceptional load capacity and smooth operation
- Series: 30 series – offering balanced load capacity for mid-range to demanding applications
- Material Construction: Steel with plastic components for durability, corrosion resistance, and lightweight characteristics
- Preload: Light preload for optimal balance between rigidity and smooth operation
- Lubrication: Relubricatable design allowing extended service life with scheduled maintenance intervals
- Sealing: End seals and sealing strips provide protection against contaminants and dust ingress
- Tolerance Class: G2 for precise dimensional accuracy and demanding precision requirements
- Temperature Range: -10 to +80°C, suitable for most industrial environments
- Ball Chain: Without ball chain
- Version: High design for enhanced performance
Ideal Applications:
This carriage is well-suited for machinery requiring precise linear guidance with moderate to heavy loading requirements, including production equipment, material handling systems, industrial automation platforms, and positioning systems where maintenance accessibility and long-term reliability are important considerations. The six-row ball configuration makes it particularly valuable for applications demanding superior load distribution and consistent performance under demanding operational conditions.
