Quick Code: BB-509209

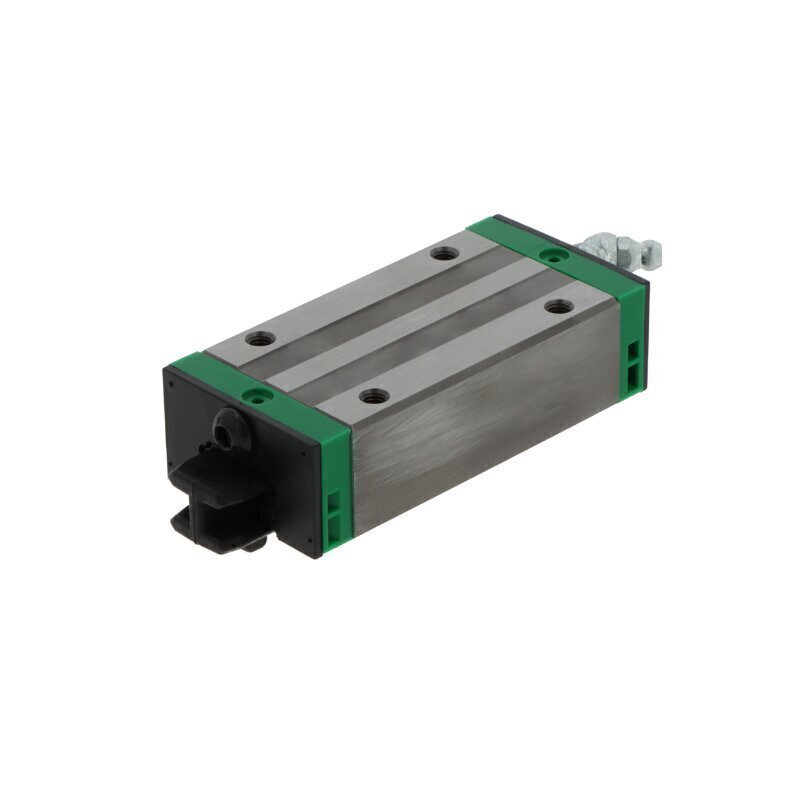

KWSE30-HL-V2-G3 INA Carriage
The KWSE30-HL-V2-G3 INA Carriage is a precision linear motion component engineered for industrial applications demanding high load capacity, extended reach, and reliable smooth linear guidance. This six-row ball carriage combines robust construction with versatile performance characteristics to support demanding automation, machinery systems, and heavy-duty applications.
Key Specifications:
- Design: Block carriage configuration for secure, rigid mounting in various orientations
- Series: 30 series delivering excellent load capacity and stability for demanding applications
- Rolling Elements: Ball type in six-row arrangement for superior load distribution and carrying capacity
- Preload: Medium preload for optimized load handling with controlled friction levels
- Tolerance Class: G3 providing high precision for accurate positioning and smooth operation
- Material: Steel with plastic components for durability, strength, and weight efficiency
- Lubrication: Relubricatable design for extended service life and flexible maintenance schedules
- Sealing: End seals and sealing strips for comprehensive protection against contamination and dust ingress
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
- Version: High and long design for extended travel distances and increased reach
Applications:
Ideal for use in heavy-duty automated machinery, large-format material handling systems, extended-travel CNC equipment, industrial automation systems, and applications requiring long-stroke linear motion with high load-bearing capacity. The high and long design combined with six-row ball configuration makes it particularly suitable for applications requiring extended operational reach, superior load handling, and reliable long-term performance in demanding industrial environments.
