Quick Code: BB-509208

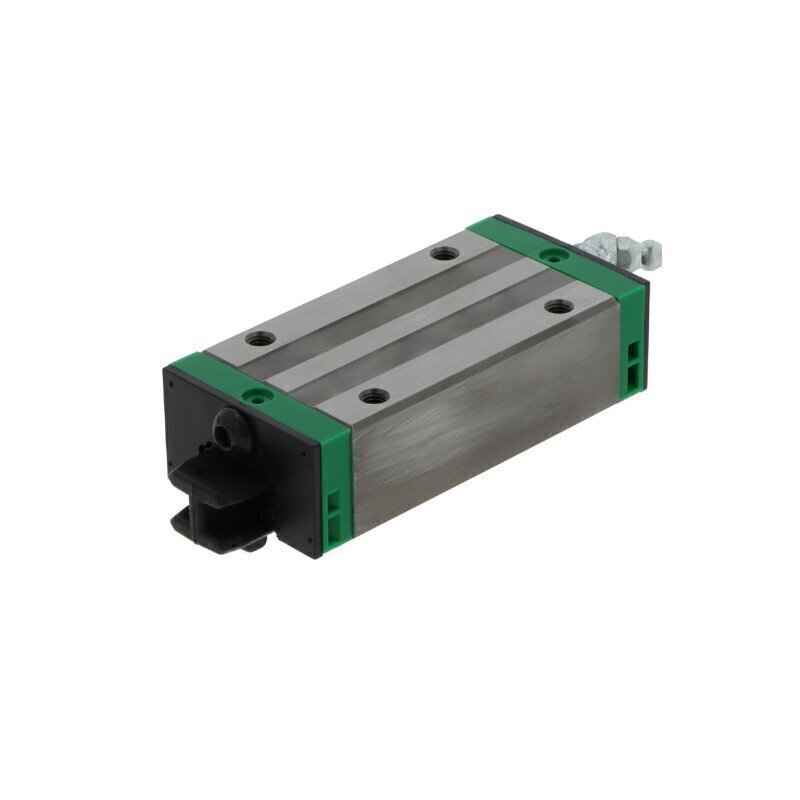

KWSE30-HL-V1-G3 INA Carriage
The KWSE30-HL-V1-G3 is a precision-engineered linear carriage from INA's 30 series, specifically designed for demanding industrial applications requiring smooth, accurate linear motion with extended travel capabilities. This block carriage combines robust engineering with versatile performance characteristics to deliver reliable linear guidance across a wide range of operational scenarios.
Key Specifications:
- Design: Block carriage configuration for compact and stable linear guidance
- Rolling Elements: Ball type with six-row configuration for superior load distribution, enhanced load capacity, and exceptionally smooth motion
- Preload: Light preload setting for optimized performance and reduced friction
- Material Composition: Steel and plastic components for durability and lightweight handling
- Tolerance Class: G3 for precision linear motion applications
- Version: High and long design providing extended travel capabilities and enhanced rigidity
- Lubrication: Relubricatable design allowing for extended service life through scheduled maintenance intervals
- Sealing: End seals and sealing strips for protection against contamination and environmental ingress
- Operating Temperature Range: -10 to +80°C for reliable performance in varied industrial environments
- Ball Chain: Without ball chain for streamlined operation
Ideal Applications:
The KWSE30-HL-V1-G3 is well-suited for industrial automation, manufacturing equipment, material handling systems, and precision assembly machines where high-load capacity combined with extended travel distances, six-row rolling element configuration, and dependable linear motion are essential requirements. The six-row design makes this carriage particularly valuable for applications demanding superior load handling and enhanced operational reliability.
