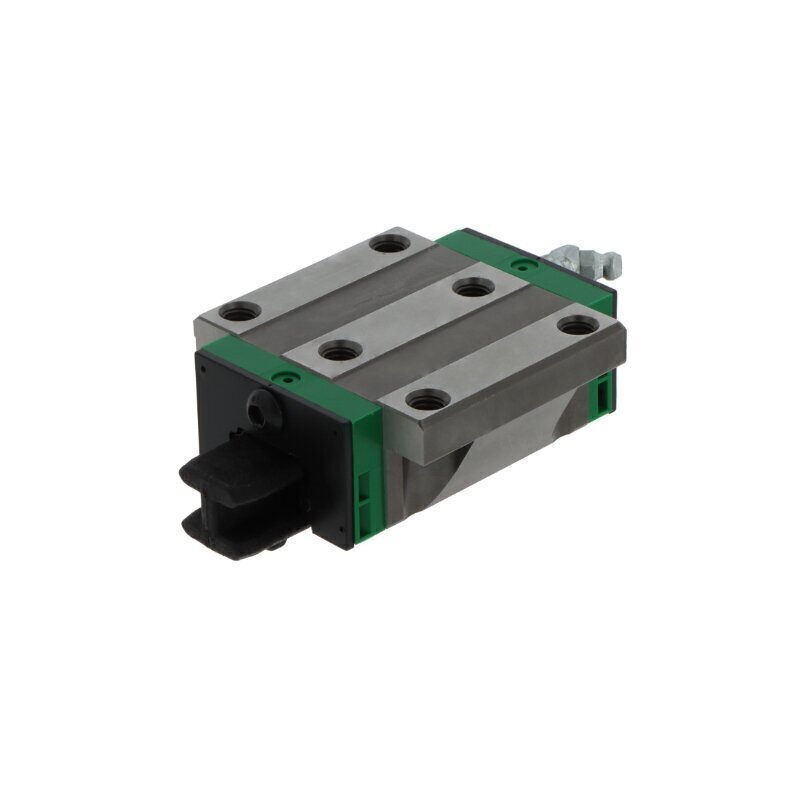

KWSE25-V1-G2 INA Carriage
The KWSE25-V1-G2 INA Carriage is a precision-engineered flange carriage designed for demanding linear motion applications requiring smooth, accurate movement and exceptional reliability. This six-row ball carriage combines robust engineering with versatile functionality to meet diverse industrial automation and mechanical system requirements.
Product Overview
As part of INA's renowned 25 series carriage range, the KWSE25-V1-G2 delivers precision linear guidance with enhanced load distribution capabilities. The standard version configuration provides optimal performance for a wide range of industrial positioning and motion control applications.
Key Specifications
- Series: 25 series
- Design: Flange carriage configuration for secure mounting and alignment
- Rolling Elements: Ball type, six-row configuration for superior load distribution and stability
- Material Composition: Steel and plastic components offering durability with lightweight advantages
- Preload: Light preload for optimal balance between rigidity and smooth operation
- Tolerance Class: G2 for precise linear guidance and tight tolerances
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips protect against contamination and extend operational reliability
- Operating Temperature Range: -10 to +80°C, suitable for climate-controlled and moderately heated environments
- Ball Chain: Without ball chain option for applications requiring independent carriage operation
- Version: Standard version configuration
Ideal Applications
The KWSE25-V1-G2 is particularly suited for:
- Industrial machinery requiring reliable linear guidance with medium load capacity
- Automation systems demanding precision positioning and smooth movement
- Manufacturing equipment requiring enhanced stability through six-row ball configuration
- Mechanical assemblies where tight tolerances and consistent performance are essential
- Linear motion systems requiring relubricatable maintenance accessibility
This carriage delivers the precision and reliability expected from INA products, combining durability with superior load distribution capabilities and maintenance accessibility for long-term operational performance.
