Quick Code: BB-509202

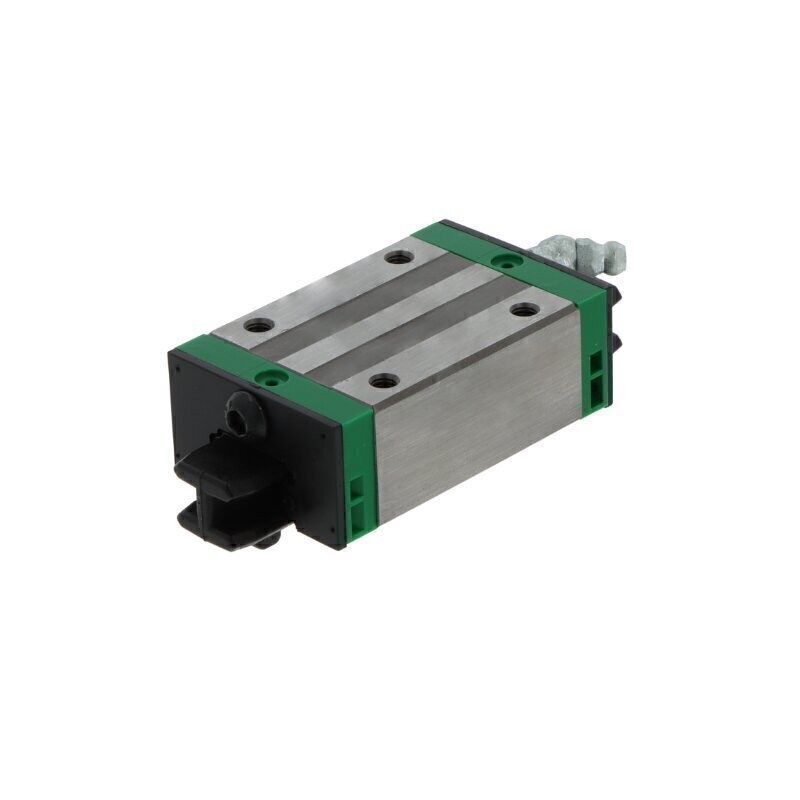

KWSE25-H-V2-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High design
Reference
KWSE25HV2G3
Additional Reference:
10100751
Quick Order Code
BB-509202
Product Description
The KWSE25-H-V2-G3 INA Carriage is a robust precision linear motion component engineered for applications demanding reliable, smooth linear movement with enhanced load capacity. This high-design block carriage delivers excellent performance across a wide range of industrial automation and machinery applications, making it ideal for systems requiring superior rigidity and stability.
Key Specifications
- Series: 25 series
- Design: Block carriage with high design configuration
- Rolling Elements: Ball type with six-row configuration for superior load distribution
- Preload: Medium preload for balanced stiffness and load capacity
- Material: Steel with plastic components
- Tolerance Class: G3
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and reduced maintenance intervals
- Sealing: End seals and sealing strips for enhanced protection against contamination
- Operating Temperature Range: -10 to +80°C
Applications
The KWSE25-H-V2-G3 is ideal for:
- Heavy-duty machinery requiring high rigidity and stability
- High-speed automated assembly and material handling systems
- Industrial production equipment with increased load requirements
- Precision positioning applications with substantial load capacities
- Manufacturing systems operating in temperature-controlled environments
- Applications demanding extended service intervals and reduced downtime
With its six-row ball configuration, medium preload design, and relubricatable maintenance capability, this carriage ensures reliable, stable performance while minimizing maintenance requirements and extending component life in demanding industrial environments.
