Quick Code: BB-509201

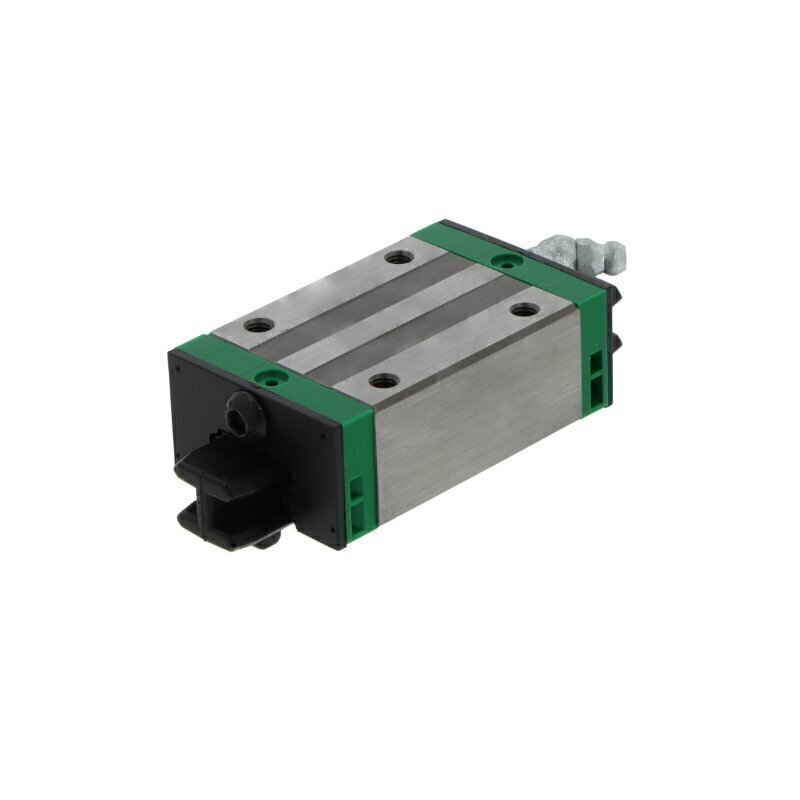

KWSE25-H-V2-G2 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
SKF Ball Bearings
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G2
Type of rolling elements
Balls
Version
High design
Reference
KWSE25HV2G2
Additional Reference:
10100747
Quick Order Code
BB-509201
Product Description
The KWSE25-H-V2-G2 INA Carriage is a precision-engineered linear motion component from INA's renowned 25 series, specifically designed for demanding industrial applications requiring smooth, accurate linear movement with enhanced load capacity.
Key Features:
- Design: Block carriage configuration for versatile installation options
- Rolling Elements: Six-row ball bearing arrangement for superior load distribution and smooth operation
- Preload: Medium preload setting, balancing rigidity with minimal friction
- High Design Version: Elevated profile carriage for applications requiring extended load capacity
- Tolerance Class: G2 precision grade for tight dimensional tolerances and reliable performance
- Material Construction: Steel body with plastic components for durability and cost-effectiveness
- Lubrication: Relubricatable configuration for extended service life and predictable maintenance intervals
- Sealing: End seals and sealing strips to protect against contamination and extend operational reliability
- Operating Temperature: -10 to +80°C, suitable for diverse environmental conditions
Applications:
The KWSE25-H-V2-G2 is ideal for precision automation systems, CNC machinery, industrial robotic systems, material handling equipment, and other applications demanding high-precision linear motion with moderate to heavy loads. The relubricatable design makes it particularly suitable for operations requiring periodic maintenance without component replacement.
