Quick Code: BB-509140

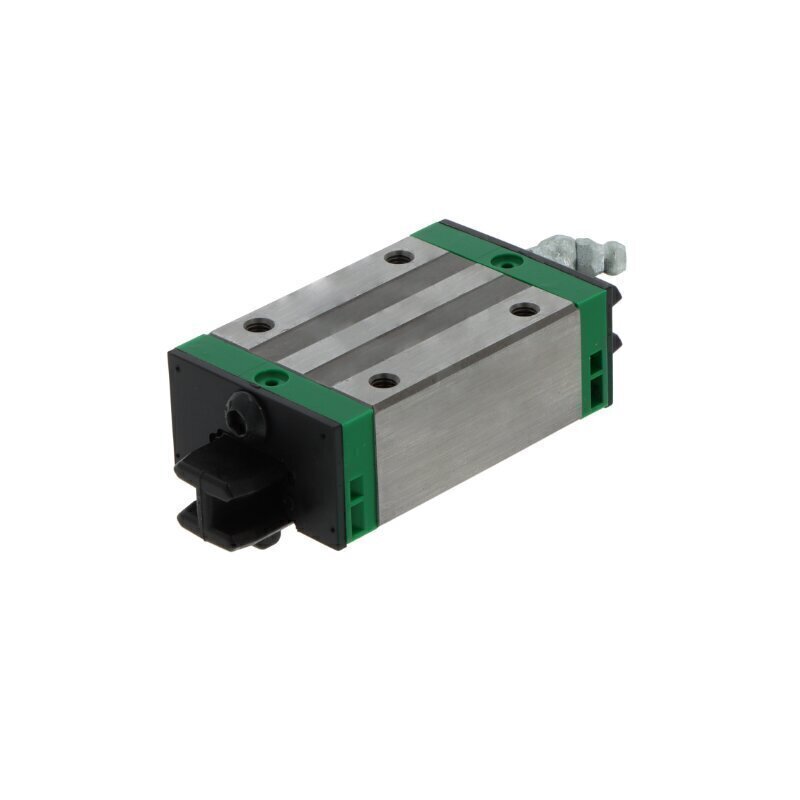

KWSE25-H-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High design
Reference
KWSE25HV1G3
Additional Reference:
10099913
Quick Order Code
BB-509140
Product Description
The KWSE25-H-V1-G3 INA Carriage is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate linear movement. This high-design block carriage delivers reliable performance in systems where space optimization and load capacity are critical considerations.
Key Specifications:
- Series: 25 series
- Design: Block carriage with high design profile
- Rolling Elements: Ball type, six-row configuration
- Preload: Light preload for balanced performance
- Tolerance Class: G3
- Material Construction: Steel with plastic components
- Lubrication: Relubricatable for extended service life
- Sealing: End seals and sealing strips for enhanced protection
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Application Benefits:
The KWSE25-H-V1-G3 is ideal for industrial automation, machinery, and positioning systems where:
- Smooth, guided linear motion is essential
- Compact mounting space with vertical load capacity is required
- Maintenance accessibility and lubrication intervals are important
- Temperature stability within moderate ranges is needed
- Precision tolerance and consistent performance are critical
This carriage combines the proven reliability of INA engineering with practical maintenance features, making it an excellent choice for both OEM and retrofit applications in industrial linear motion systems.
