Quick Code: BB-509200

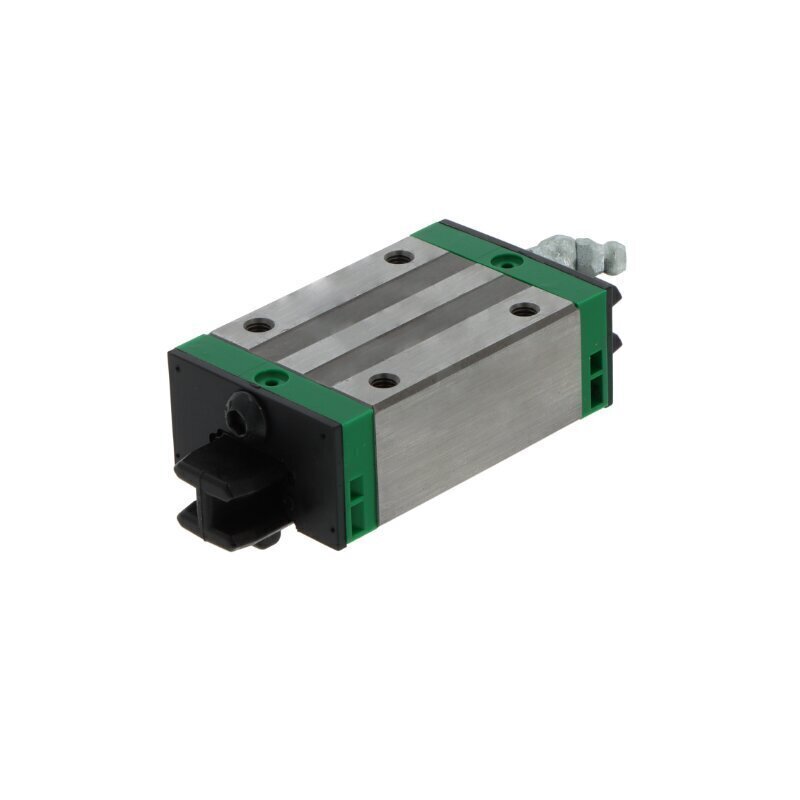

KWSE25-H-V1-G1 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
25 series
Temperature range
-10 to +80 °C
Tolerance class
G1
Type of rolling elements
Balls
Version
High design
Reference
KWSE25HV1G1
Additional Reference:
10100741
Quick Order Code
BB-509200
Product Description
The KWSE25-H-V1-G1 INA Carriage is a precision linear motion component engineered for industrial applications demanding smooth, accurate linear movement with compact vertical integration. This block carriage combines robust construction with advanced engineering to deliver reliable performance in diverse operational environments.
Key Specifications:
- Design: Block carriage configuration for direct rail mounting and space-efficient installation
- Series: 25 series for compact applications with optimized load handling
- Rolling Elements: Ball type with six-row configuration for superior load distribution and smooth operation
- Preload: Light preload for enhanced precision with minimal friction losses
- Material: Steel and plastic construction for durability and corrosion resistance
- Tolerance Class: G1 for ultra-high precision requirements and tight positioning tolerances
- Design Version: High design profile for optimized vertical clearance in compact mounting spaces
- Lubrication: Relubricatable configuration for extended service life and flexible maintenance intervals
- Sealing: End seals and sealing strips to protect against contamination and ensure reliable performance
- Ball Chain: Without ball chain for lightweight, streamlined operation
- Operating Temperature: -10 to +80°C for reliable performance across varied climates
Ideal Applications:
The KWSE25-H-V1-G1 is well-suited for precision automation systems, laboratory instrumentation, optical positioning equipment, and compact industrial machinery where high positional accuracy, six-row load distribution, and space-constrained vertical mounting are essential requirements.
