Quick Code: BB-509204

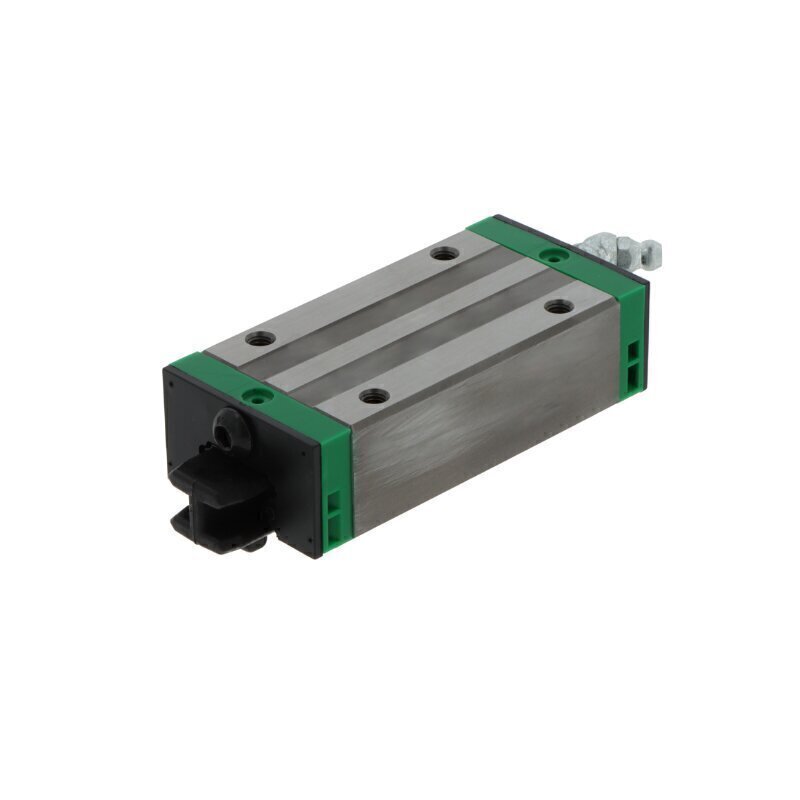

KWSE25-HL-V2-G2 INA Carriage
The KWSE25-HL-V2-G2 INA Carriage is a precision linear motion component engineered for reliable performance in demanding industrial applications. This block carriage combines advanced design with robust construction to deliver smooth, accurate linear movement in installations requiring extended reach and elevated positioning capabilities.
Key Specifications:
- Series: 25 series
- Design Type: Block carriage with high and long design
- Rolling Elements: Ball type, six-row configuration
- Preload: Medium preload for enhanced load distribution and rigidity
- Tolerance Class: G2 for precise positioning and tight tolerances
- Material: Steel with plastic components for durability and wear resistance
- Ball Chain: Without ball chain
Performance Features:
- Lubrication: Relubricatable for extended service life and easy maintenance
- Sealing: End seals and sealing strips provide comprehensive protection against contamination
- Operating Temperature: -10 to +80°C for versatile environmental compatibility
- Version: High and long design suitable for applications requiring extended travel distances and elevated mounting positions
Applications:
The KWSE25-HL-V2-G2 is ideal for machinery requiring moderate to heavy load capacities with consistent linear motion over extended distances, including vertical automation equipment, high-reach manufacturing systems, precision assembly systems, and industrial positioning mechanisms where reliable performance, low maintenance, and enhanced load-bearing capacity are essential.
Reference: KWSE25HLV2G2 | Brand: INA
