Quick Code: BB-509195

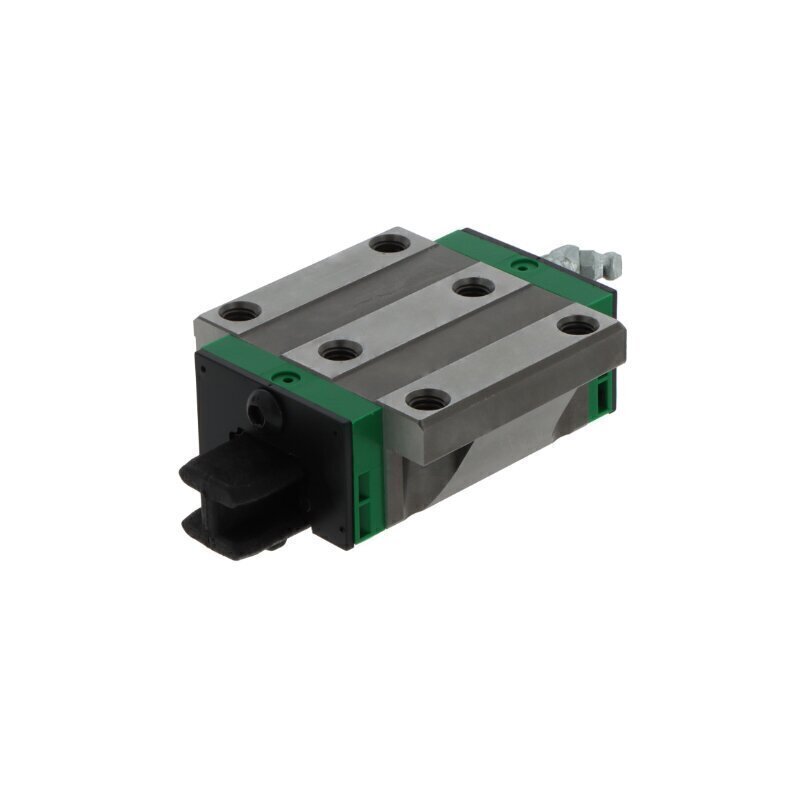

KWSE20-V2-G1 INA Carriage
The KWSE20-V2-G1 INA Carriage is a precision linear motion component engineered for industrial applications demanding high accuracy and smooth linear movement. This flange carriage combines advanced engineering with superior tolerance capabilities, making it ideal for systems requiring exceptional precision and reliability.
Product Specifications:
- Series: 20 series
- Design: Flange carriage
- Rolling Elements: Ball type in six-row configuration
- Material: Steel with plastic components
- Preload: Medium preload for enhanced load capacity and rigidity
- Tolerance Class: G1 (highest precision grade available)
- Sealing: End seals and sealing strips for comprehensive protection
- Lubrication: Relubricatable for extended service life and optimized maintenance intervals
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Key Features:
The KWSE20-V2-G1 delivers exceptional precision with its G1 tolerance class, the highest grade available in the INA carriage range. The six-row ball configuration provides outstanding load distribution and smooth linear motion, while the medium preload setting balances load capacity with operational efficiency. The flange mounting design offers flexible integration into various linear systems, and the relubricatable construction ensures long-term reliability with straightforward maintenance procedures.
Applications:
The KWSE20-V2-G1 is well-suited for:
- High-precision machine tools and CNC equipment
- Precision measurement and inspection systems
- Optical and photographic equipment positioning
- Medical and laboratory instrumentation
- Semiconductor manufacturing equipment
- Precision automation and robotics
- Coordinate measuring machines (CMM)
With comprehensive end seals protecting against contamination and a relubricatable design ensuring extended operational life, the KWSE20-V2-G1 delivers the precision and durability required for demanding industrial environments.
