Quick Code: BB-509137

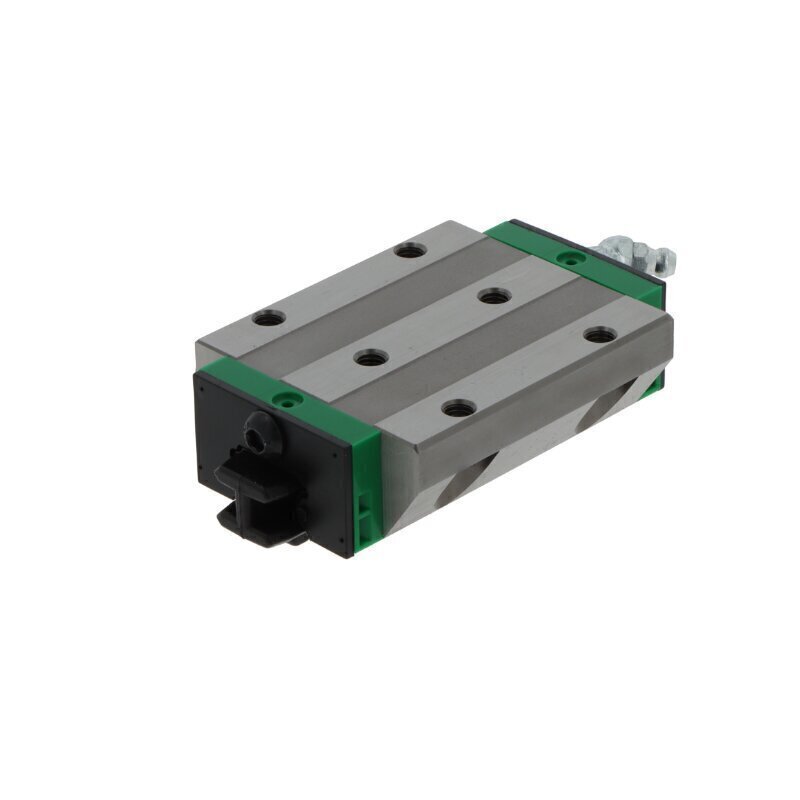

KWSE20-L-V2-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Six Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Long design
Reference
KWSE20LV2G3
Additional Reference:
10099907
Quick Order Code
BB-509137
Product Description
The KWSE20-L-V2-G3 INA Carriage is a precision-engineered linear motion component from INA's 20 series, designed for demanding industrial applications requiring smooth, accurate linear movement. This flange carriage combines advanced engineering with robust construction to deliver reliable performance in a wide range of operating environments.
Key Features:
- Design: Flange carriage configuration for secure mounting and installation flexibility
- Rolling Elements: Six-row ball bearing configuration for excellent load distribution and smooth operation
- Preload: Medium preload for optimal balance between load capacity and smooth motion
- Material: Steel with plastic components for durability and lightweight performance
- Lubrication: Relubricatable design for extended service life and easy maintenance
- Sealing: End seals and sealing strips for enhanced protection against contamination
- Tolerance Class: G3 for precise dimensional accuracy
- Version: Long design providing extended travel range and enhanced stability
- Operating Temperature: -10 to +80°C for reliable performance in varied thermal conditions
Ideal Applications:
This carriage is well-suited for industrial automation systems, CNC machinery, packaging equipment, and other precision linear motion applications where medium load capacity, smooth operation, and long-term reliability are essential requirements.
Reference: KWSE20LV2G3
