Quick Code: BB-509196

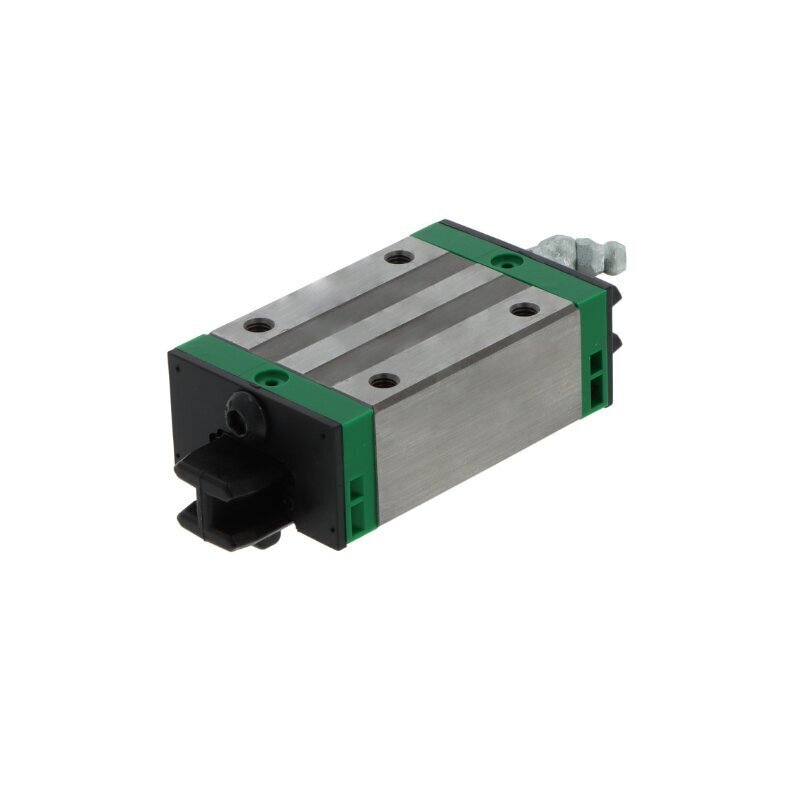

KWSE20-H-V2-G3 INA Carriage
The KWSE20-H-V2-G3 INA Carriage is a precision linear motion component engineered for industrial applications requiring robust, reliable linear movement with enhanced load-carrying capabilities. This high-design block carriage delivers smooth, accurate motion while providing the structural strength needed for demanding operational environments.
Product Specifications:
- Series: 20 series
- Design: Block carriage with high design configuration
- Rolling Elements: Ball type in six-row configuration
- Material: Steel with plastic components
- Preload: Medium preload for enhanced load capacity and stiffness
- Tolerance Class: G3
- Sealing: End seals and sealing strips for comprehensive protection
- Lubrication: Relubricatable for extended maintenance intervals
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Key Features:
This carriage combines INA's proven linear motion technology with a robust block carriage design featuring six rows of precision ball rolling elements. The high-design configuration provides superior load capacity and rigidity, making it ideal for applications demanding consistent performance under challenging conditions. The medium preload setting delivers an excellent balance between load-carrying ability and operational smoothness, while the relubricatable design ensures long-term reliability with straightforward maintenance. Comprehensive end seals and sealing strips provide robust protection against contamination in demanding industrial environments.
Applications:
The KWSE20-H-V2-G3 is well-suited for:
- Heavy-duty machine tools and CNC equipment
- Industrial automation systems with high load requirements
- Precision positioning and indexing applications
- Assembly and material handling equipment
- Textile and printing machinery
- Packaging and processing equipment
- Industrial robotic systems
- Large-format printing equipment
