Quick Code: BB-530722

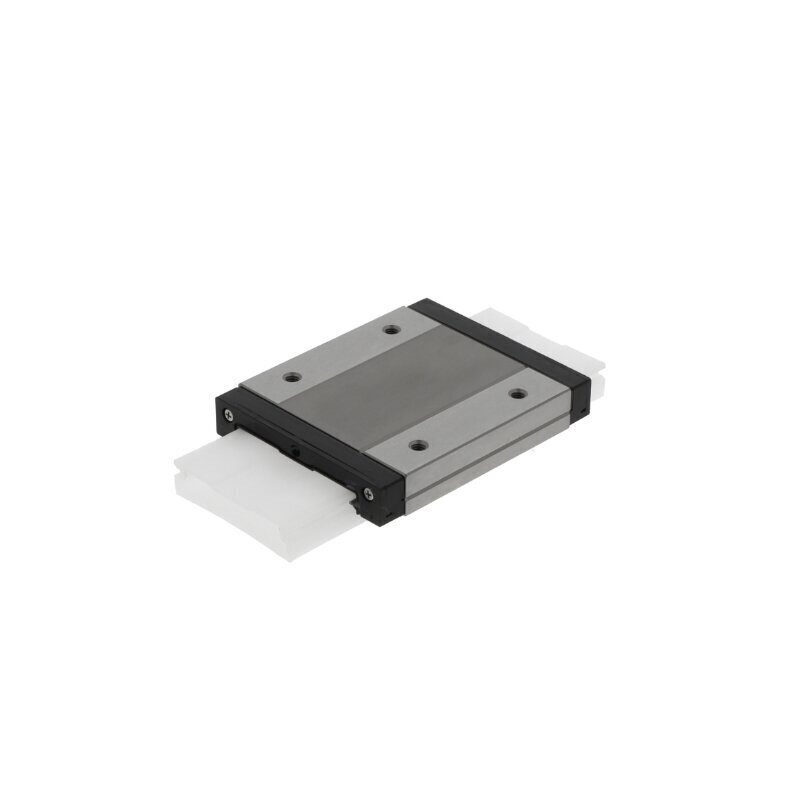

KWEM15-WL-V1-G2B INA Carriage
The KWEM15-WL-V1-G2B INA Carriage is a precision-engineered linear motion component designed for industrial applications requiring smooth, accurate linear movement with corrosion resistance. This double-row ball carriage combines compact engineering with robust construction, featuring a wide and long design to accommodate diverse mounting and travel requirements in demanding automation and machinery systems.
Key Specifications:
- Design: Block carriage configuration for versatile mounting options
- Series: 15 series with optimized load capacity for compact applications
- Rolling Elements: Double-row ball type for smooth, precise motion and balanced load distribution
- Version: Wide and long design for extended travel coverage and flexible installation configurations
- Preload: Light preload for reduced friction and smooth operation
- Material: Stainless steel with plastic components for superior corrosion resistance and durability in challenging environments
- Tolerance Class: G2B for precise dimensional accuracy and positioning requirements
- Sealing: End seals and sealing strips for protection against contamination and debris
- Lubrication: Relubricatable design via lubrication nipple for extended service life and field maintenance capability
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain configuration
Ideal Applications:
The KWEM15-WL-V1-G2B is particularly well-suited for applications in corrosive or hygiene-sensitive environments such as food processing, pharmaceutical machinery, marine equipment, and chemical handling systems. The stainless steel construction combined with the wide and long design makes it an excellent choice for industrial automation, packaging equipment, and precision machinery where corrosion resistance, extended travel, and reliable performance are essential. The relubricatable design enhances maintainability in environments where regular service access is available, reducing long-term operational costs while maintaining consistent precision.
Reference: KWEM15WLV1G2B | Brand: INA
