Quick Code: BB-530746

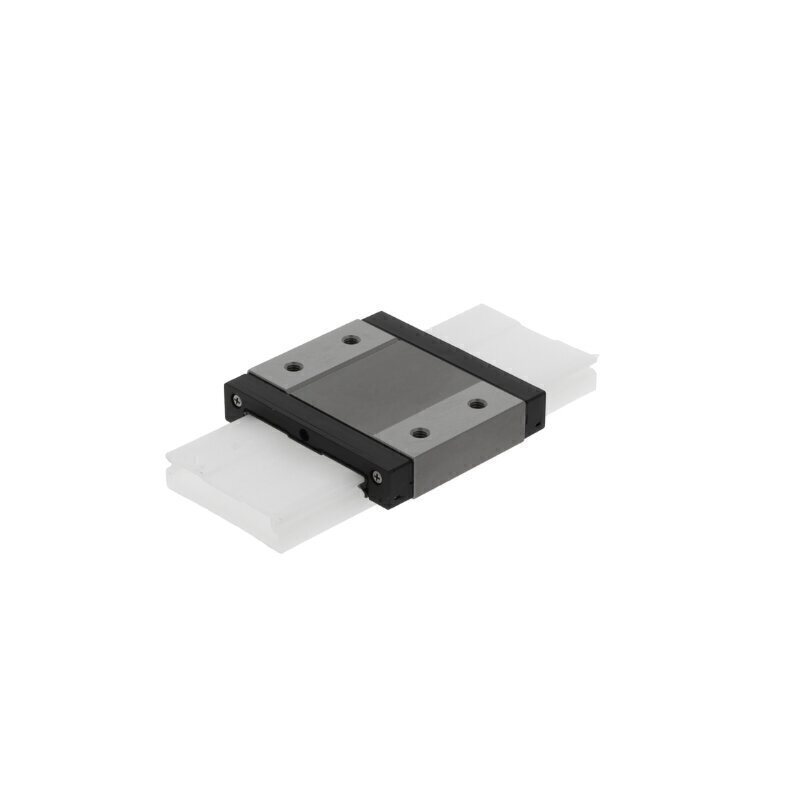

KWEM09-W-V0-G2A INA Carriage
The KWEM09-W-V0-G2A INA Carriage is a precision linear motion component engineered for compact industrial applications requiring smooth, accurate linear movement with superior corrosion resistance. This double-row ball block carriage combines stainless steel construction with a specialized wide design to deliver reliable performance in demanding industrial environments while maintaining a compact footprint.
Key Specifications:
- Series: 9 series for compact, light-to-medium load applications
- Design: Block carriage with wide configuration for enhanced load distribution and stability
- Rolling Elements: Ball type, double-row configuration for balanced load distribution and smooth motion
- Preload: Without preload for optimized ease of movement and reduced friction during operation
- Material: Stainless steel with plastic components for enhanced corrosion resistance and exceptional durability
- Tolerance Class: G2A for precision applications requiring accurate dimensional tolerances
- Ball Chain: Without ball chain for straightforward maintenance and optimized performance
- Lubrication: Relubricatable via lubrication nipple for extended service life and convenient field maintenance
- Sealing: End seals and sealing strips for superior protection against contamination, dust, and debris
- Operating Temperature Range: -10 to +80°C for diverse industrial environments
Ideal Applications:
The KWEM09-W-V0-G2A is well-suited for compact automation systems, precision machinery with space constraints, industrial positioning equipment, and linear motion applications operating in corrosive or humid environments. The stainless steel construction makes it particularly valuable for food processing equipment, pharmaceutical machinery, chemical facilities, and medical device applications where standard steel carriages would be susceptible to accelerated corrosion. The wide design provides enhanced stability and load distribution while maintaining the compact profile essential for space-constrained installations. The without-preload configuration provides smooth, responsive motion ideal for applications requiring both ease of operation and reliable precision positioning.
Brand: INA | Reference: KWEM09WV0G2A
