Quick Code: BB-530716

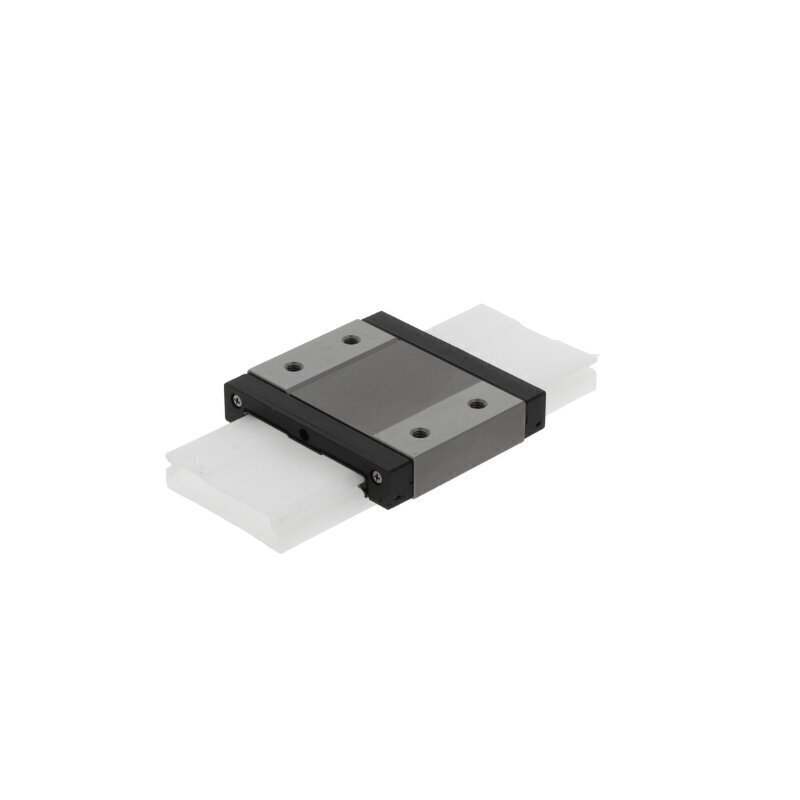

KWEM09-W-UG-V0-G2A INA Carriage
The KWEM09-W-UG-V0-G2A INA Carriage is a precision linear motion component engineered for compact industrial applications requiring reliable, accurate linear guidance with corrosion resistance. This block carriage design delivers smooth, precise motion in a space-efficient wide configuration, making it ideal for installations where durability in challenging environments and dependable performance are essential.
Product Specifications:
- Series: 9 series – compact carriage range for space-constrained applications
- Design: Block carriage with wide design configuration for enhanced stability and load distribution
- Rolling Elements: Ball type in double-row configuration for smooth, reliable linear motion
- Material: Stainless steel with plastic components for superior corrosion resistance and durability
- Preload: Without preload for smooth operation with minimal resistance
- Tolerance Class: G2A for excellent precision in linear guidance applications
- Sealing: End seals and sealing strips for comprehensive protection against contamination
- Lubrication: Relubricatable for extended maintenance intervals and long-term operational reliability
- Operating Temperature Range: -10 to +80°C, suitable for climate-controlled and moderately heated environments
- Ball Chain: Without ball chain option for independent carriage operation
Key Features:
The KWEM09-W-UG-V0-G2A combines INA's proven linear motion technology with a compact block carriage design optimized for applications demanding reliability and corrosion resistance. The stainless steel construction provides exceptional durability in challenging industrial and semi-corrosive environments, while the double-row ball configuration ensures smooth, consistent linear motion with dependable accuracy. The G2A tolerance class delivers excellent precision capabilities, making this carriage suitable for applications requiring reliable accuracy tolerances. The wide design configuration provides enhanced stability and improved load distribution, while the relubricatable design ensures long-term reliability with straightforward maintenance and comprehensive end seals protect against contamination.
Ideal Applications:
The KWEM09-W-UG-V0-G2A is well-suited for:
- Food and beverage processing equipment requiring corrosion resistance
- Pharmaceutical and laboratory instrumentation
- Marine and coastal equipment exposed to salt spray or moisture
- Chemical processing systems requiring stainless steel construction
- Compact automation systems in demanding industrial environments
- Medical device assembly and precision positioning applications
- Textile and packaging machinery in humid conditions
- Water treatment and environmental monitoring equipment
- Precision indexing and positioning systems requiring corrosion protection
This carriage delivers the precision, reliability, and exceptional corrosion resistance expected from INA's stainless steel product line, combining smooth operation with superior durability for demanding industrial applications in challenging environments.
