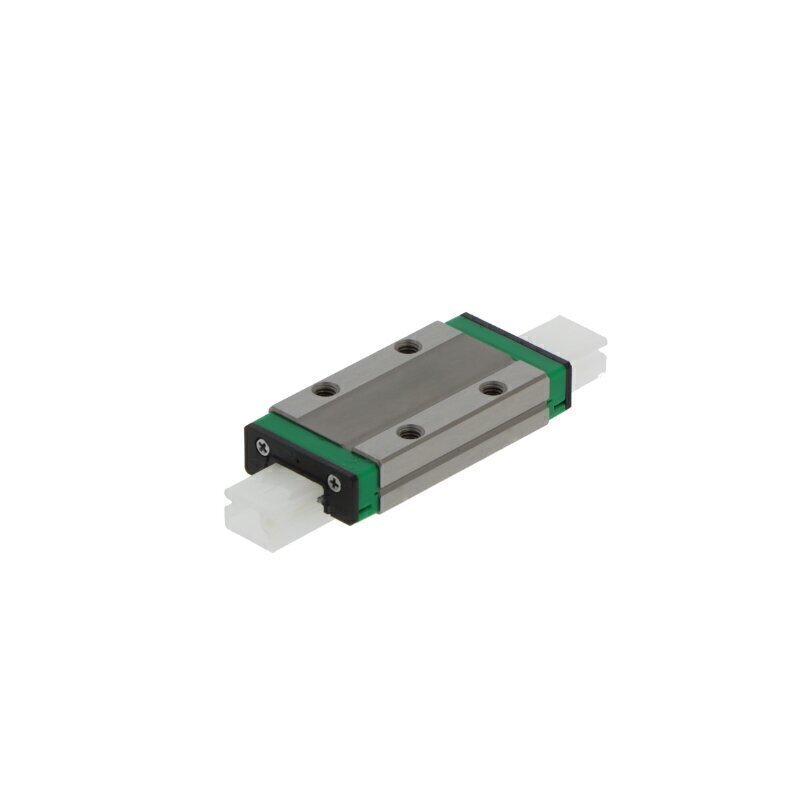

KWEM09-L-LZM-V1-G2A INA Carriage
The KWEM09-L-LZM-V1-G2A INA Carriage is a precision-engineered block carriage designed for compact linear motion applications demanding corrosion resistance and reliable performance in challenging environments. Part of INA's versatile 9 series, this carriage combines advanced stainless steel construction with practical engineering features to deliver smooth, accurate linear movement in demanding industrial settings.
Key Specifications:
- Design: Block carriage configuration for integrated linear motion solutions
- Series: 9 series for compact, space-efficient applications
- Rolling Elements: Double-row ball bearing system for smooth operation and balanced load distribution
- Material Composition: Stainless steel body with plastic components for superior corrosion resistance and environmental durability
- Preload: Light preload for reduced friction and smooth, responsive motion characteristics
- Lubrication: Integrated lubrication system for reliable long-term performance and convenient maintenance
- Sealing: End seals and sealing strips for comprehensive protection against contamination and environmental ingress
- Tolerance Class: G2A for precision positioning and accurate repeatability
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
- Version: Long design for extended travel distances and versatile installation configurations
Applications:
The KWEM09-L-LZM-V1-G2A is ideally suited for precision linear motion systems where corrosion resistance and compact design are critical. This carriage excels in applications including:
- Food and beverage processing equipment requiring stainless steel construction
- Pharmaceutical and laboratory automation systems
- Medical device positioning equipment with extended travel requirements
- Water treatment and chemical processing machinery
- Hygienic and washdown environments where corrosion resistance is essential
- Outdoor or coastal industrial automation systems
- Precision positioning systems demanding smooth, reliable motion with minimal maintenance
The combination of stainless steel construction, double-row ball elements, and integrated lubrication system makes this carriage an excellent choice for applications requiring durability, corrosion resistance, and precision in compact spaces.
Reference: KWEM09LLZMV1G2A | Brand: INA
