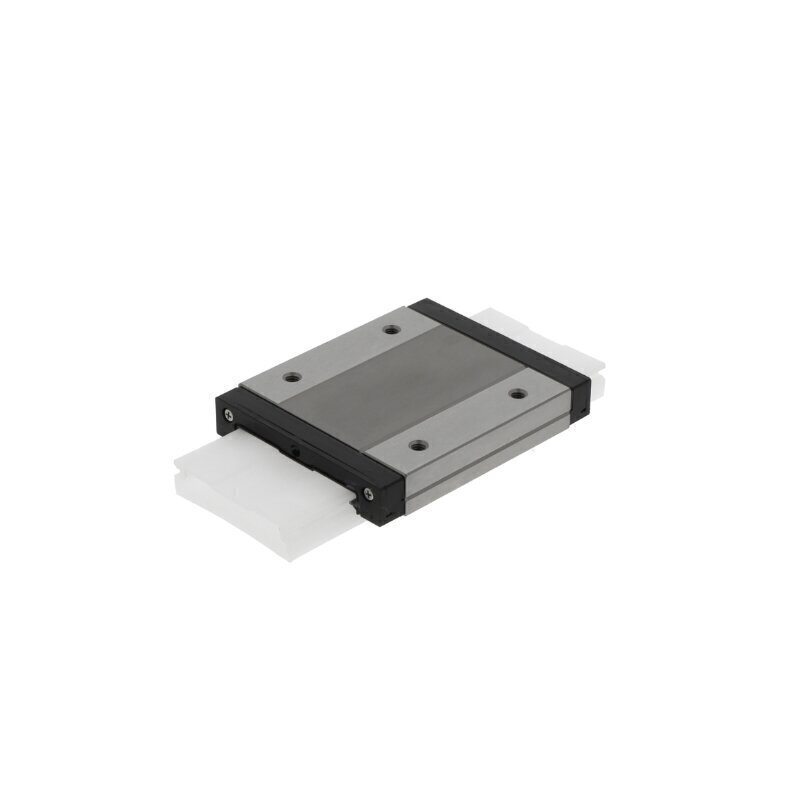

KWEM07-WL-V1-G2A INA Carriage
The KWEM07-WL-V1-G2A INA Carriage is a precision-engineered linear motion component from INA's compact 7 series, specifically designed for applications requiring smooth, accurate linear movement with excellent corrosion resistance. This double-row ball carriage combines stainless steel construction with light preload characteristics and a wide and long design configuration, delivering reliable performance in demanding environments where hygiene, precision, and extended travel capabilities are essential.
Key Specifications:
- Design: Block carriage configuration for versatile mounting options
- Series: 7 series – compact and lightweight
- Rolling Elements: Ball type in double-row arrangement for smooth, consistent linear motion
- Preload: Light preload for optimal balance between precision and operational smoothness
- Tolerance Class: G2A for high-precision positioning applications
- Material Composition: Stainless steel and plastic components for superior corrosion resistance and reliability
- Version: Wide and long design providing extended travel range and enhanced lateral stability
- Lubrication: Relubricatable design for extended service life and flexible maintenance scheduling
- Sealing: End seals and sealing strips providing comprehensive contamination protection
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain configuration
Ideal Applications:
The KWEM07-WL-V1-G2A is well-suited for demanding industrial applications requiring extended travel capabilities with superior corrosion resistance, including:
- Food processing and beverage production systems requiring corrosion-resistant components
- Pharmaceutical and medical device manufacturing equipment demanding hygiene standards
- Chemical and washing industries requiring stainless steel construction
- Long-stroke precision automation systems where extended travel enhances operational capability
- Laboratory and analytical equipment requiring reliable linear guidance with wider load distribution
- Environmental monitoring and testing applications
- Material handling and packaging systems in hygienic environments
- Applications demanding superior corrosion resistance with extended traverse capabilities and periodic maintenance access
With its stainless steel construction, light preload characteristics, G2A tolerance class, and wide and long design configuration, the KWEM07-WL-V1-G2A delivers exceptional precision, extended travel range, and reliability for applications where corrosion resistance, smooth operation, lateral stability, and high accuracy are critical to success.
Brand: INA
Reference: KWEM07WLV1G2A
