Quick Code: BB-522109

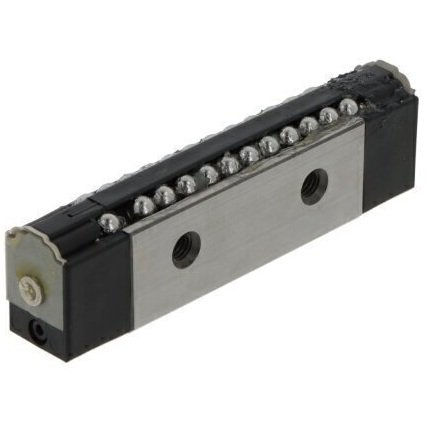

KUVS17-B INA Linear Recirculating Ball Bearing Unit
The KUVS17-B INA linear recirculating ball bearing unit is a precision-engineered guidance component designed for guideways with raceways on both sides. Built to deliver smooth, low-friction motion under demanding conditions, this double-row ball bearing unit offers reliable performance and long service life across a wide range of linear technology applications.
Overview
Manufactured by INA, the KUVS17-B combines a robust steel and plastic construction with adjustable preload and effective sealing, making it an ideal choice for monorail guidance systems where accuracy and durability are essential.
Key Features
- Double-row ball design for balanced load capacity and stable, precise linear travel
- Adjustable preload via adjusting screws, allowing you to fine-tune rigidity to suit your application
- Relubrication capability through the integrated lubrication nipple for straightforward maintenance
- Comprehensive sealing with end seals and sealing strips to protect against contamination
- Wide operating temperature range from -10 to +100 °C
Technical Specifications
- Reference: KUVS17-B
- Brand: INA
- Ball-/Roller rows: Double Row
- Type of rolling elements: Balls

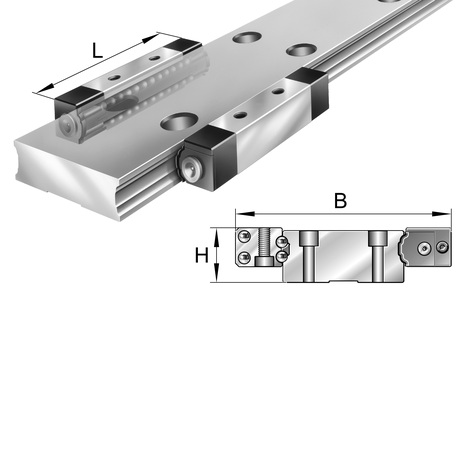

- Inner dimension: 17.5 mm
- Outer dimension: 25.45 mm
- Width: 96 mm
- Material: Steel, Plastic
- Preload: Adjustable via adjusting screws
- Seal: End seals and sealing strips
- Lubrication & Maintenance: Can be relubricated (via the lubrication nipple)
- Temperature range: -10 to +100 °C
Typical Applications
The KUVS17-B is well suited to monorail guidance systems and linear technology setups that require precise, repeatable positioning. Common use cases include machine tools, automation and handling equipment, measuring and inspection systems, and any application where reliable linear motion with adjustable preload and easy relubrication is needed.
