RALE25NPP 25mm Bore INA Bearing Insert

Name: RALE25NPP 25mm Bore INA Bearing Insert
Brand: INA
SKU: RALE25-NPP
Price: 21.47 GBP
Availability: InStock

Also Try

INA 4 Bolt Round

INA 4 Bolt Flanged

INA Pillow Block Housed

INA 2 Bolt Flanged

INA Take Up Units

Buy Now

Qty:

Product Specification

Alternative Part Number

RALE25-XL-NPP; RALE25XLNPP

Inner Race Width (B)

25.5mm

Inside Dia (d)

25mm

Outer Race Width (C)

12mm

Outer Ring Profile

Cylindrical

Outside Dia (D)

47mm

Reference

RALE25-NPP

Brand

INA

Quick Order Code

BB-141706

Product Description

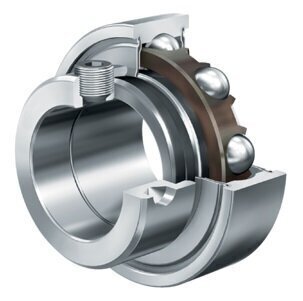

RALE25NPP 25mm INA Bearing Insert

INA bearing insert with cylindrical outer ring, location by eccentric locking collar and P seals on both sides.

Features:

Grease lubrication

Lifetime lubrication, free from maintenance

Sealed on both sides

Operating temperature range: -20 deg C to +120 deg C

Sizes (see below diagram):

d: 25mm
D: 47mm
B: 25.5mm
B1: 17.5mm
C: 12mm
d2: 30mm
d3 max: 36mm
S: 6mm
W: 2.5mm
Mass: 0.13kg
Basic dynamic load rating, radial: 10700N
Basic static load rating, radial: 5900N
Fatigue limit load, radial: 295N
