Bearings Housed & Flanged Bearings INA Housed Bearings INA Bearing Inserts
Quick Code: BB-141699

RAE30NPPNR 30mm INA Bearing Insert

£20.11 Was £22.34 exc VAT (£24.13 inc VAT)
In Stock   Free Delivery Available   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Alternative Part Number
RAE30-XL-NPP-NR; RAE30XLNPPNR
Inner Race Width (B)
35.8mm
Inside Dia (d)
30mm
Outer Race Width (C)
18mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
62mm
Reference
RAE30NPPNR
Brand
INA
Quick Order Code
BB-141699
Product Description

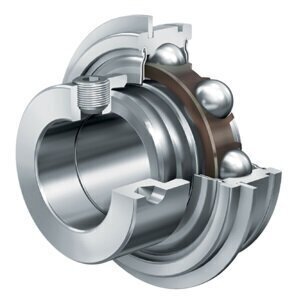

RAE30NPPNR 30mm INA Bearing Insert

INA bearing insert with cylindrical outer ring, eccentric locking collar, slots in outer ring and P seals on both sides.

Features:
  • Grease lubrication
  • Lifetime lubrication, free from maintenance
  • Sealed on both sides
  • Operating temperature range: -20 deg C to +120 deg C

    Sizes (see below diagram):

    d: 30mm
    D: 62mm
    B: 35.8mm
    A: 4.98mm
    B1: 23.8mm
    C: 18mm
    D2: 67.7mm
    d2: 37.4mm
    d3 max: 44mm
    f: 1.7mm
    S: 9mm
    W: 4mm
    Mass: 0.33kg
    Basic dynamic load rating, radial: 20700N
    Basic static load rating, radial: 11300N
    Fatigue limit load, radial: 570N
