Quick Code: BB-141522

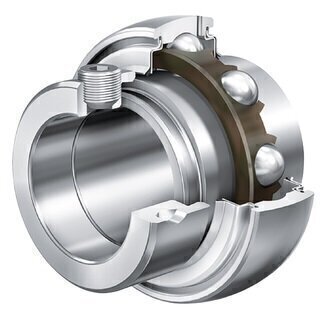

GNE35KRRB 35mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Alternative Part Number
GNE35-XL-KRR-B; GNE35XLKRRB
Inner Race Width (B)
51.6mm
Inside Dia (d)
35mm
Outer Race Width (C)
22mm
Outer Ring Profile
Spherical
Outside Dia (D)
80mm
Reference
GNE35-KRR-B
Brand
INA
Quick Order Code
BB-141522
Product Description
GNE35KRRB 35mm INA Bearing Insert
INA bearing insert with spherical outer ring, location by eccentric locking collar and R seals on both sides.
Features:
Sizes (see below diagram):
d: 35mm
D: 80mm
B: 51.6mm
B1: 38.1mm
C: 22mm
C2: 25mm
Ca: 6.9mm
D1: 66.6mm
d1: 48mm
d3 max: 55mm
S: 18.3mm
W: 5mm
Mass: 0.74kg
Basic dynamic load rating, radial: 39000N
Basic static load rating, radial: 20900N
Fatigue limit load, radial: 1060N
