E50KLL 50mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Inner Race Width (B)
62.8mm
Inside Dia (d)
50mm
Outer Race Width (C)
22mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
90mm
Reference
E50-KLL
Brand
INA
Quick Order Code
BB-141283
Product Description

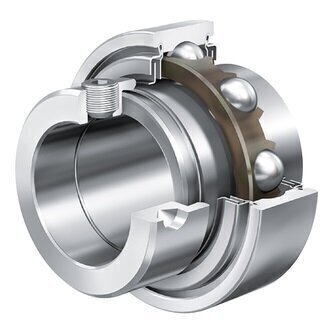

E50KLL INA Bearing Insert with 50mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and L seals on both sides.
Features:
Sizes (see below diagram):
d: 50mm
D: 90mm
B: 62.8mm
B1: 49.2mm
C: 22mm
C2: 26.4mm
D1: 77.3mm
d1: 62.8mm
d3 max: 69mm
S: 24.6mm
W: 5mm
Mass: 1kg
Basic dynamic load rating, radial: 37500N
Basic static load rating, radial: 23200N
Fatigue limit load, radial: 1180N
