Quick Code: BB-141276
E35KRRB 35mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Qty:
Product Specification
Inner Race Width (B)
51.3mm
Inside Dia (d)
35mm
Outer Race Width (C)
19mm
Outer Ring Profile
Spherical
Outside Dia (D)
72mm
Reference
E35-KRR-B
Brand
INA
Quick Order Code
BB-141276
Product Description
E35KRRB INA Bearing Insert with 35mm Bore

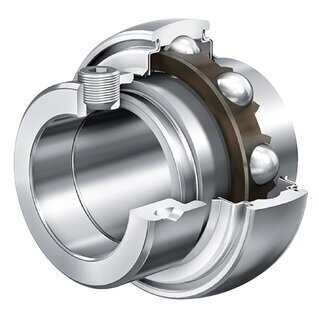

INA bearing insert with spherical outer ring, eccentric locking collar and R seals on both sides.
Features:
Sizes (see diagram below):
d: 35mm
D: 72mm
B: 51.3mm
B1: 37.7mm
C: 19mm
C2: 22.5mm
D1: 60.3mm
d1: 46.8mm
d3 max: 55mm
S: 18.8mm
W: 5mm
Mass: 0.59kg
Basic dynamic load rating, radial: 27500N
Basic static load rating, radial: 15300N
Fatigue limit load, radial: 770N
