Quick Code: BB-132166
E35KLL 35mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
51.3mm
Inside Dia (d)
35mm
Outer Race Width (C)
19mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
72mm
Reference
E35-KLL
Brand
INA
Quick Order Code
BB-132166
Product Description

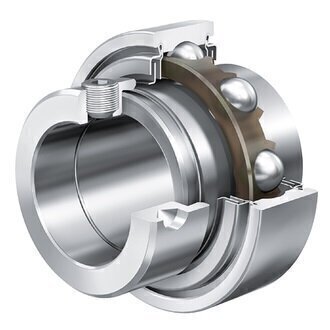

E35KLL INA Bearing Insert with 35mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and L seals on both sides.
Features:
Sizes (see diagram below):
d: 35mm
D: 72mm
B: 51.3mm
B1: 37.7mm
C: 19mm
C2: 25.4mm
D1: 60.3mm
d1: 46.8mm
d3 max: 55mm
S: 18.8mm
W: 5mm
Mass: 0.6kg
Basic dynamic load rating, radial: 27500N
Basic static load rating, radial: 15300N
Fatigue limit load, radial: 770N
