Quick Code: BB-132063
E20KLL 20mm Bore INA Bearing Insert
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
Buy Now
Product Specification
Inner Race Width (B)
43.7mm
Inside Dia (d)
20mm
Outer Race Width (C)
14mm
Outer Ring Profile
Cylindrical
Outside Dia (D)
47mm
Reference
E20-KLL
Brand
INA
Quick Order Code
BB-132063
Product Description

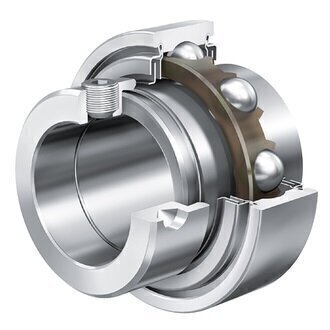

E20KLL INA Bearing Insert with 20mm Bore
INA bearing insert with cylindrical outer ring, eccentric locking collar and L seals on both sides.
Features:
Sizes (see below diagram):
d: 20mm
D: 47mm
B1: 43.7mm
B: 34.1mm
C: 14mm
C2: 16.6mm
D1: 37.4mm
d1: 27.6mm
d3 max: 33mm
S: 17.1mm
W: 3mm
Mass: 0.2kg
Basic dynamic load rating, radial: 13600N
Basic static load rating, radial: 6600N
Fatigue limit load, radial: 335N
