RMEY80 80mm INA 4 Bolt Round Flanged Bearing
Also Try
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
SB & SA Bearing Inserts
Pix Mower Belt
Buy Now
Qty:
Product Specification
Alternative Part Number
RMEY80-XL; RMEY80XL
Bolt Hole Centre (J)
184mm
Bore Size (d)
80mm
Brand
INA
Height (B)
82.6mm
Outside Dia (H)
220mm
RHP Equivalent
FC80
Reference
RMEY80
Quick Order Code
BB-141896
Product Description

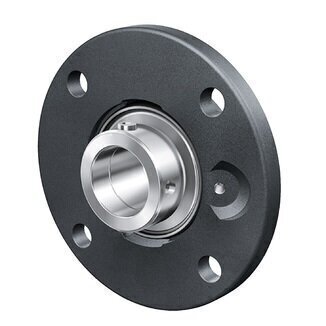

RMEY80 80mm INA 4 Bolt Round Flanged Bearing
Normal duty four bolt round flanged bearing unit complete with grub screw bearing insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
It has a centring spigot which give concentric alignment of the housings and relieves the fixing screws of any radial forces.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
Sizes (see below diagram):
d 80 mm
H 220 mm
B 82,6 mm
A 31 mm
A1 18 mm
J 184 mm
N 18 mm
Q M6
S 6 mm
U 51,3 mm
Z 160 mm Tolerance: h8
m 5,43 kg Mass
Cr 76000 N Basic dynamic load rating, radial
C0r 54000 N Basic static load rating, radial
ME16 Designation of housing
GYE80-XL-KRR-B Designation of bearing
