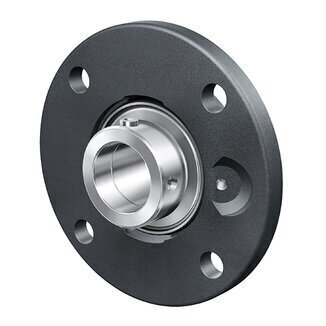

RME45 45mm INA 4 Bolt Round Flanged Bearing
Also Try
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA 2 Bolt Flanged
INA Take Up Units
LS Spherical Plain Bearings
Cylindrical roller bearings
Buy Now
Qty:
Product Specification
Alternative Part Number
RME45-XL RME45XL; RME45
Bolt Hole Centre (J)
130mm
Bore Size (d)
45mm
Brand
INA
Height (B)
56.5mm
Outside Dia (H)
155mm
RHP Equivalent
FC45DEC
Reference
RME45
Quick Order Code
BB-142429
Product Description
RME45 45mm INA 4 Bolt Round Flanged Bearing
Normal duty four bolt round flanged bearing unit complete with eccentric locking collar bearing insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
It has a centring spigot which gives concentric alignment of the housings and relieves the fixing screws of any radial forces.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
Sizes (see below diagram):
d 45 mm
H 155 mm
B 56,5 mm
A 25 mm
A1 12 mm
A2 2 mm
d3 max 63 mm
J 130 mm
N 14 mm
Q M6
S 2 mm
U 32,9 mm
Z 105 mm Tolerance: h8
m 2,05 kg Mass
Cr 34500 N Basic dynamic load rating, radial
C0r 20400 N Basic static load rating, radial
ME09 Designation of housing
GE45-XL-KRR-B Designation of bearing
