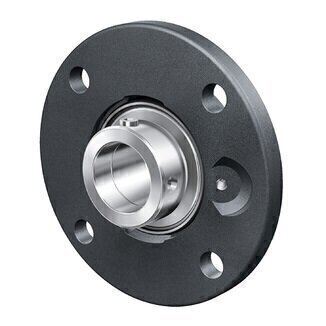

RME40 40mm INA 4 Bolt Round Flanged Bearing

£60.18 exc VAT (£72.22 inc VAT)
In Stock   Free Delivery Available   Next Day Delivery Available Order by 4pm
Buy Now
Qty:
Product Specification
Bore Size (d)
40mm
Outside Dia (H)
145mm
Height (B)
56.5mm
Bolt Hole Centre (J)
120mm
RHP Equivalent
FC40DEC
Alternative Part Number
RME40-XL-N; RME40XLN; RME40N
Brand
INA
Reference
RME40
Quick Order Code
BB-142428
Product Description
RME40 40mm INA 4 Bolt Round Flanged Bearing

Normal duty four bolt round flanged bearing unit complete with eccentric locking collar bearing insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.

It has a centring spigot which gives concentric alignment of the housings and relieves the fixing screws of any radial forces.

The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.

Sizes (see below diagram):

d 40 mm
H 145 mm
B 56,5 mm
A 23 mm
A1 11,5 mm
A2 1 mm
d3 max 58 mm
J 120 mm
N 11,5 mm
Q M6
S 2 mm
U 33,9 mm
Z 100 mm Tolerance: h8
m 1,74 kg Mass
Cr 34500 N Basic dynamic load rating, radial
C0r 19800 N Basic static load rating, radial
ME08 Designation of housing
GE40-XL-KRR-B Designation of bearing
KASK08 Bearing end cap, closed design. To be ordered separately.
Slot for bearing end cap
