Bearings Linear Bearings & Shaft Linear Carriages Hiwin Carriages Hiwin Carriages
Quick Code: BB-699932

HGL15CAZ0H Hiwin Linear Carriage

HGL15CAZ0H Hiwin Linear Carriage
Also Try
Profile Rail
£40.16 exc VAT (£48.19 inc VAT)
In Stock   Free Delivery over £100   Next Day Unavailable
Buy Now
Product Specification
Accuracy Class
H
Block Length (L)
61.4mm
Block Width (W)
34mm
Dynamic Load Rating
14,700N
Total Height (H)
24mm
Reference
HGL15CA-Z0H
Brand
Hiwin
Quick Order Code
BB-699932
Product Description

The HGL15CAZ0H Hiwin Linear Carriage is a precision-engineered low-profile block designed for high-performance linear motion applications. This carriage features a top-mounting configuration, allowing you to fasten your adjacent structure from above for secure and stable installation.

Manufactured by Hiwin, a trusted leader in linear motion technology, this carriage delivers smooth, accurate movement with exceptional load-bearing capabilities. The H accuracy class ensures high precision for demanding applications where tight tolerances are essential.

Key Features:

  • Low-profile block design for compact installations
  • Top-mounting capability for versatile assembly options
  • High dynamic load capacity for demanding applications
  • Precision ground for smooth linear motion

    • Typical Applications:

  • CNC machinery and machine tools
  • Industrial automation systems
  • Precision measuring equipment
  • Semiconductor manufacturing equipment
  • Medical and laboratory instrumentation
  • Packaging and handling systems

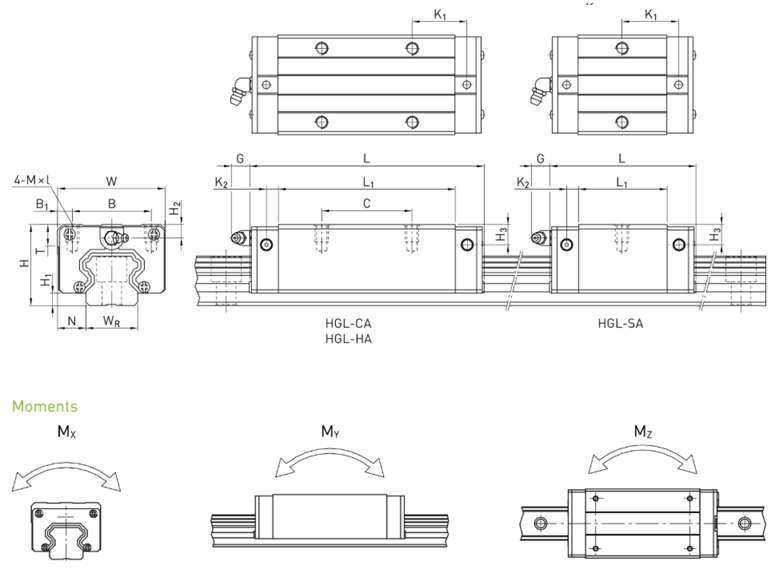

    • Dimensions:

  • H Total height 24 mm
  • H1 4,3 mm
  • N 9,5 mm
  • W Block width 34 mm
  • B 26 mm
  • B1 4 mm
  • C 26 mm
  • L1 39,4 mm
  • L Block length 61,4 mm
  • K1 10 mm
  • K2 4,85 mm
  • G 5,3 mm
  • M M4
  • l 4 mm
  • T 6 mm
  • H2 3,95 mm
  • H3 3,7 mm
  • Mass 0,14 kg

    Load Ratings and Torques:

  • Cdyn Dynamic load rating 14.700 N
  • C0 Static load rating 23.470 N
  • M0X Static moment 120 Nm
  • M0Y Static moment 140 Nm
  • M0Z Static moment 140 Nm
  • Click here for data sheet
