Motors & Gearboxes Single Phase Motors Cap Run - Permanent Capacitor Flange Mounted Electric Motors (B5)
Quick Code: BB-401966

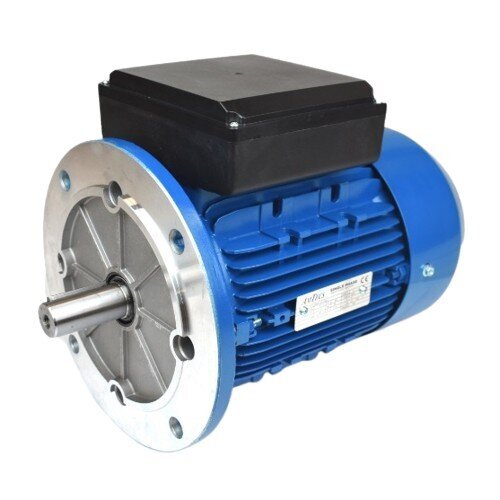

Amtecs IE1 0.37kW 2 Pole Single Phase Perm Cap B5 Flange Mount Electric Motor, 71 Frame

Name: Amtecs IE1 0.37kW 2 Pole Single Phase Perm Cap B5 Flange Mount Electric Motor, 71 Frame
Brand: Amtecs
SKU: 28212037R
Price: 99.66 GBP
Availability: InStock

Also Try

Foot Mounted Electric Motors (B3)

Face Mounted Electric Motors (B14)

Foot & Face Mounted Electric Motors (B34)

Foot & Flange Mounted Electric Motors (B35)

Buy Now

Qty:

Product Specification

Brand

Amtecs

Mounting

B5 Flange

Output Rating (hp)

0.5

Output Rating (kW)

0.37

Speed

3000rpm

Reference

28212037R

Quick Order Code

BB-401966

Product Description

This range of aluminium single phase running capacitor multi-mount motors is suitable for many different industrial applications. The running capacitor design is suitable for low starting torque applications such as fans. The multi-mount design enables the feet to be removed or moved to provide left, right or top terminal box configurations. Lower starting torque 0.3 - 0.7 times the rated torque.

Applications

Fans

Pumps

Food industry

Key Features

Industrial single phase series of aluminium housing motors

Capacitor run

IP55 protection degree

Insulation class F, temperature rise 80°C

Terminal box rotation at 180°

NSK bearings<

RAL 5010, blue colour
