Quick Code: BB-448105

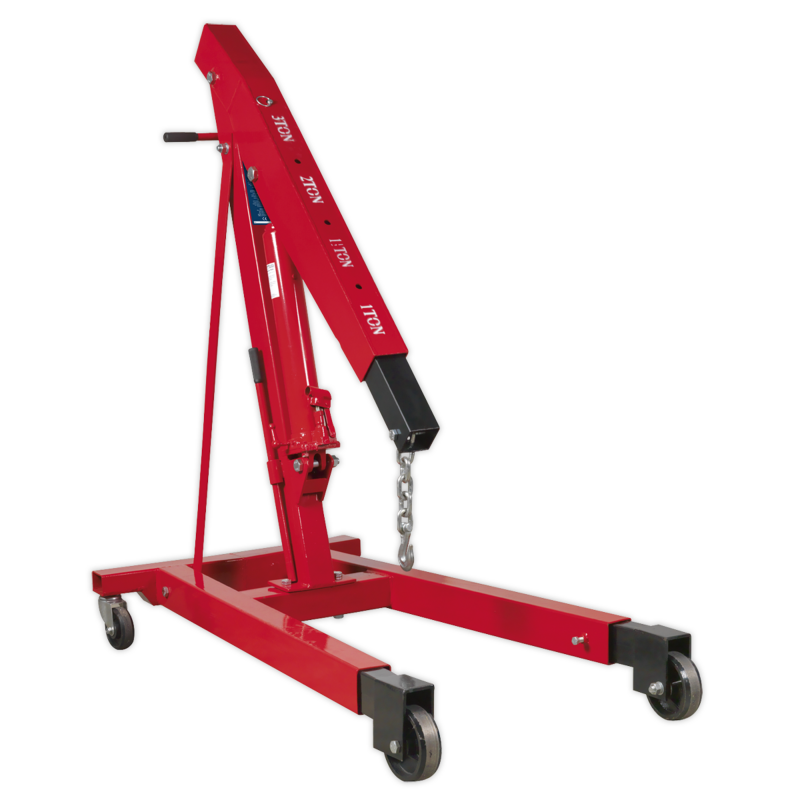

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne
Also Try
Folding
Hydraulic Rams
Metric Sizes - Dunlop & Budget
RHP Bearing Inserts
SKF Bearing Inserts
08B1 1/2inch Simplex Platewheel
Buy Now
Qty:
Product Specification
Brand
Sealey
Height Jib Down
1610mm
Height Legs Folded
n/a
Height of Frame
195mm
Length of Jib Position 1
1200mm
Length of Jib Position 2
1400mm
Length of Jib Position 3
1610mm
Length of Jib Position 4
1820mm
Length of Jib Position 5
n/a
Lifting Capacity in Position 1
3000kg
Lifting Capacity in Position 2
2000kg
Lifting Capacity in Position 3
1500kg
Lifting Capacity in Position 4
1000kg
Lifting Capacity in Position 5
n/a
Max. Lift Ht at Jib Position 1
1880mm
Max. Lift Ht at Jib Position 2
1970mm
Max. Lift Ht at Jib Position 3
2010mm
Max. Lift Ht at Jib Position 4
2220mm
Max. Lift Ht at Jib Position 5
n/a
Model No
PH30
Nett Weight
155kg
Note
*Legs Extended
Rear Width
780mm
Width Front Frame
855mm*
Width Inside Front Frame
700mm*
Reference
PH30
Quick Order Code
BB-448105
Product Description
Lifts 3000kg at 1200mm jib extension.Heavy-duty castors.
Perfect for heavy commercial, industrial and workshop use.
Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.
Pump access from side for safe handling of heavy loads.
Delivered in knock-down form for reduced freight cost.
Some self-assembly required.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
