Motors & Gearboxes 3 Phase Electric Motors Aluminium Frame Electric Motors Face Mounted Electric Motors (B14)
Quick Code: BB-401394

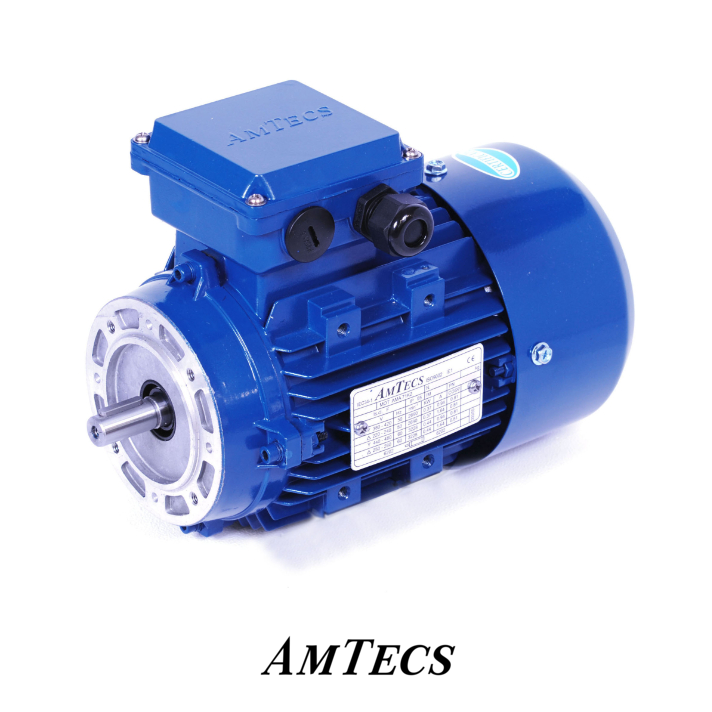

Amtecs IE3 0.75kW 3ph 4 Pole B14S Face Mount Aluminium Electric Motor, 80 Frame

Amtecs IE3 0.75kW 3ph 4 Pole B14S Face Mount Aluminium Electric Motor, 80 Frame
Also Try
£166.48 exc VAT (£199.78 inc VAT) Show Bulk Discounts (5+)
5+: £158.16
In Stock   Free Delivery Available   Next Day Order by 4pm
Buy Now
Qty:
Product Specification
Frame Size
80
Pole
4
Power
0.75kW
Shaft Dia
19mm
Speed
1420rpm
Reference
28324075HC
Brand
Amtecs
Quick Order Code
BB-401394
Product Description
Key Features
  • IE3 efficiency
  • Aluminium three-phase squirrel cage induction motors according to IEC 60034-1
  • Multi-mount design, with removable feet
  • Standard Voltage ranges 220-240/380-420V or 380-420/660-720V, 50Hz
  • Insulation class F, Class B Temperature rise
  • Protection IP55
  • Colour RAL 5010
  • NSK Bearings
  • Thermistors as standard
