Bearings Slewing Rings FUN 20 Metric Series - Flanged Light Series
Quick Code: BB-135576

FUN5052000CCLM Flanged Ungeared Slewing Ring

£669.00 exc VAT (£802.80 inc VAT)
In Stock   Free Delivery Available   Next Day Delivery Available Order by 4pm
Buy Now
Qty:

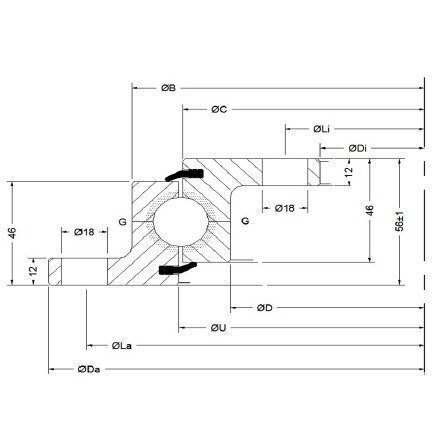

Product Specification
Internal Flange Dia (Di)
304mm
Internal Dia (D)
375mm
Outside Flange Dia (Da)
518mm
Flange Inner Hole Dia PCD (Li)
332mm
Flange Outer Hole Dia PCD (La)
490mm
B
453mm
U
415.5mm
C
412.5mm
Weight
23.5kg
Reference
FUN 505 20 00 CC LM
Quick Order Code
BB-135576
Product Description
FUN5052000CCLM Flanged Ungeared Slewing Ring

Standard slewing ring bearings incorporate plastic spacers and are assembled with a Lithium EP2 grease. It comes with a land riding nitrile rubber seal strip.

They are all manufactured in 42CrMo4 steel for improved gear strength. While a flange reduces the weight of the bearing, it also reduces the torsional stiffness and these bearings are therefore best suited to light or medium loaded applications where the load has no great eccentricity.

Typical uses:

  • Industrial positioners e.g. welding and assembly jigs
  • Ship or truck loading chute swivels
  • Stretch wrapping machines
  • Conveyors and associated materials handling equipment
  • Simple amusement rides

    Part number equivalents:

  • INA: VLU 20 0414
  • Rollix: 23 0411 01 ZZ 00
