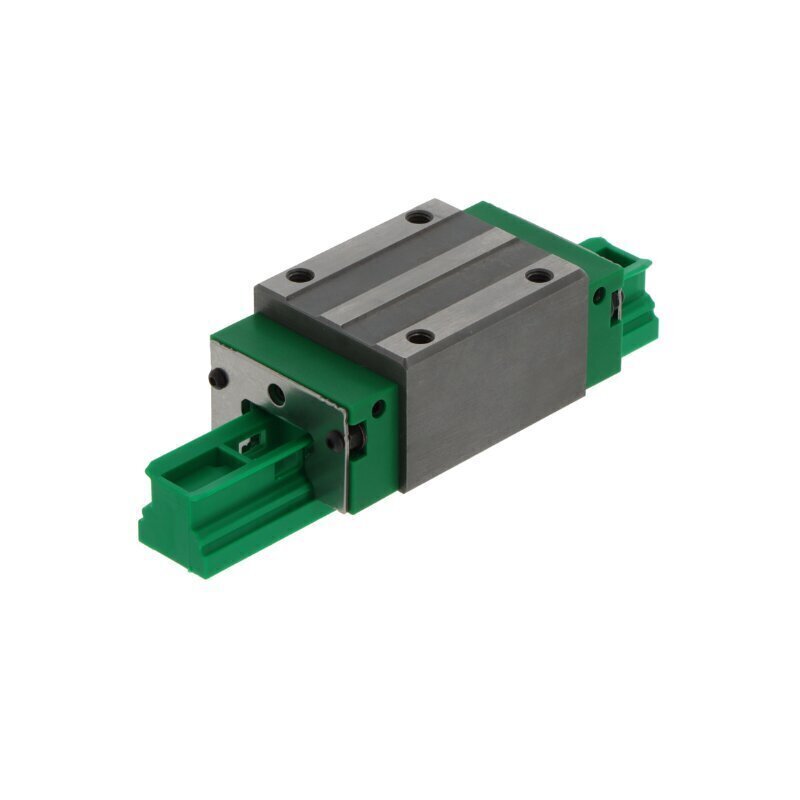

LLTHC35 R T1 P3 Ewellix Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Ewellix
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
35 series
Temperature range
-20 to +80 °C
Tolerance class
P3
Type of rolling elements
Balls
Version
High design
Reference
LLTHC35RT1P3
Additional Reference:
10130245
Quick Order Code
BB-518411
Product Description
The LLTHC35 R T1 P3 Ewellix Carriage is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate movement along linear guide rails. This high-performance block carriage combines robust engineering with exceptional precision to meet the needs of automation, machinery, robotics, and precision positioning systems.
Key Features:
- Series Size: 35 series – engineered for substantial load-bearing capacity
- Design: Block carriage configuration for versatile mounting options
- Precision: P3 tolerance class ensuring exceptional accuracy and repeatability
- Rolling Elements: Four-row ball rolling elements for superior load distribution and smooth operation
- Preload: Light preload for optimized performance and reduced play
- Material Construction: Durable steel and plastic composition for long-lasting reliability
- Comprehensive Sealing: End seals, sealing strips, and inner seals to protect against contamination
- Maintenance: Relubrication capability via lubrication nipple for extended service life
- Operating Temperature: -20 to +80°C, suitable for diverse environmental conditions
- No Ball Chain: Standard configuration without integrated ball chain
Ideal Applications:
Perfect for high-precision automation equipment, CNC machinery, robotic systems, and positioning applications where load capacity and accuracy are critical requirements.
Reference: LLTHC35RT1P3 | Brand: Ewellix
