Quick Code: BB-518407

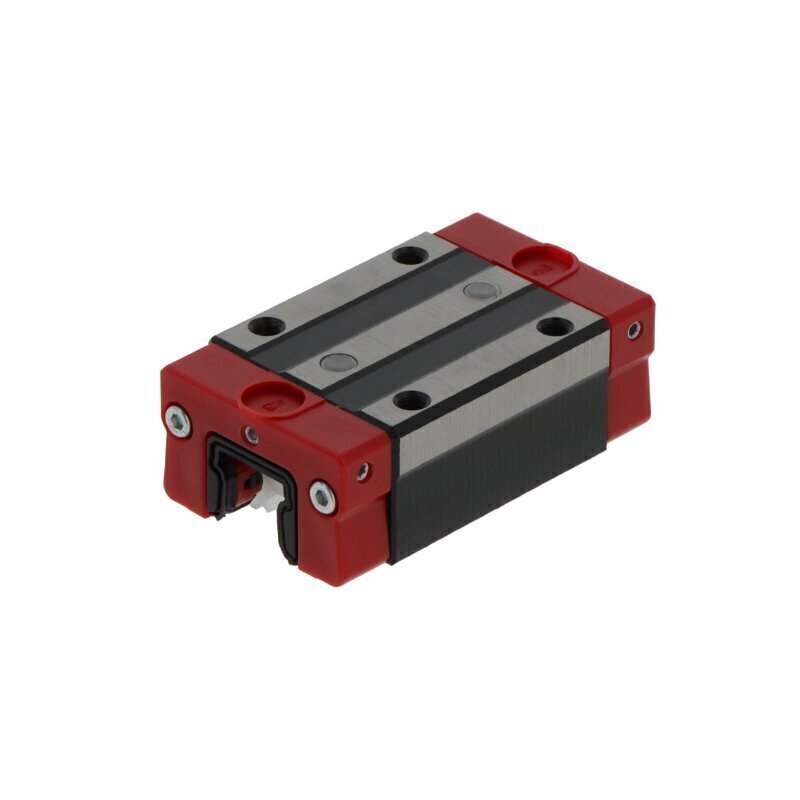

LLTHC30 U T1 P3 Ewellix Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Hoses
Screwdriver Sets
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Ewellix
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-20 to +80 °C
Tolerance class
P3
Type of rolling elements
Balls
Version
Standard version
Reference
LLTHC30UT1P3
Additional Reference:
10130240
Quick Order Code
BB-518407
Product Description
The LLTHC30 U T1 P3 Ewellix Carriage is a precision-engineered linear motion component designed to deliver smooth, accurate movement along linear guide rails in demanding industrial applications. This block carriage combines exceptional performance with robust construction, making it an ideal solution for automation systems, machinery, robotics, and precision positioning applications.
Key Features:
- Series Size: 30 series – engineered for moderate to high load requirements
- Design: Block carriage configuration for versatile mounting options
- Rolling Elements: Four-row ball rolling elements for superior load distribution and precision
- Tolerance Class: P3 – providing exceptional precision for highly demanding applications requiring superior accuracy
- Preload: Light preload for optimized performance and reduced play
- Materials: Durable steel and plastic construction ensuring longevity and reliability
Sealing & Maintenance:
- Comprehensive sealing system with end seals, sealing strips, and inner seals for protection against contaminants
- Relubrication capability via lubrication nipple for extended service life
- No ball chain configuration for simplified operation
Operating Specifications:
- Temperature Range: -20°C to +80°C, suitable for diverse environmental conditions
- Version: Standard design for general-purpose linear motion applications
This carriage is engineered to deliver reliable performance in precision positioning systems, industrial automation, and machinery where consistent accuracy and smooth motion are critical to operational success.
