Quick Code: BB-517557

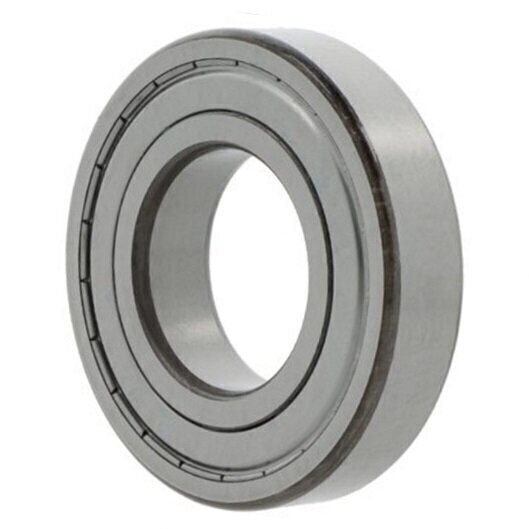

S688-2Z ZEN Stainless Shielded Deep Groove Ball Bearing 8mm x 16mm x 5mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Dunlop Taper Roller Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
8mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
16mm
Sealing
Shielded
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
5mm
Reference
S688-2Z
Additional Reference:
10128139
Quick Order Code
BB-517557
Product Description
The S688-2Z ZEN Stainless Shielded Deep Groove Ball Bearing is a high-precision, compact bearing designed for precision applications requiring durability and performance in a small form factor.
Key Features:
- Stainless steel construction for enhanced corrosion resistance
- Single row deep groove ball bearing design
- Shielded configuration for improved protection against contaminants
- Cylindrical bore for versatile mounting options
- Sheet steel cage for reliable component retention
Technical Specifications:
- Inside Diameter: 8mm
- Outside Diameter: 16mm
- Width: 5mm
- Material: Stainless steel (rolling elements and rings)
- Temperature Range: -30°C to +150°C
- Tolerance Class: P0/PN2 / ABEC 1
- Radial Clearance: Normal
Typical Applications:
- Precision medical equipment
- Small electric motors
- Robotics and automation
- Miniature machinery
- Aerospace instrumentation
The ZEN S688-2Z bearing offers reliable performance in compact spaces, with its stainless steel construction providing excellent resistance to corrosion and wear. The shielded design helps protect internal components from dust and moisture, ensuring extended operational life and consistent performance.
