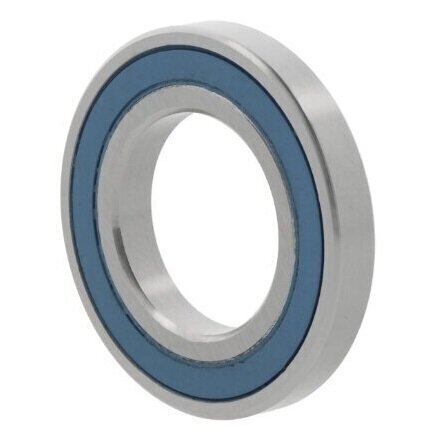

S61806-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 30mm x 42mm x 7mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
30mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
42mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
7mm
Reference
S61806-2RS
Additional Reference:
10127943
Quick Order Code
BB-517454
Product Description
The S61806-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a high-performance precision bearing engineered for applications requiring corrosion resistance and reliable performance in compact spaces. Constructed entirely from stainless steel, this bearing offers exceptional durability and protection in challenging environmental conditions.
Key Technical Specifications:
- Dimensions: 30mm x 42mm x 7mm
- Inside Diameter: 30mm
- Outside Diameter: 42mm
- Width: 7mm
- Bore Type: Cylindrical bore
- Material: Stainless steel
- Rolling Elements Material: Stainless steel
- Cage: Sheet steel cage
- Sealing: Sealed on both sides (2RS)
- Clearance: Normal radial clearance
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Current Insulation: No current insulation
- Outer Ring: Without flange/groove
Typical Applications:
- Food processing equipment
- Marine and saltwater environments
- Chemical processing machinery
- Medical and pharmaceutical equipment
- Pharmaceutical and biotechnology applications
- Clean room and sterile environment machinery
- Corrosive or moisture-prone industrial settings
The S61806-2RS ZEN bearing provides superior protection against contamination with its sealed design, making it an ideal solution for applications requiring exceptional resistance to moisture, dust, and corrosive elements. Its stainless steel construction ensures long-lasting performance and reliability in demanding environments where standard bearings would quickly degrade.
