Quick Code: BB-517372

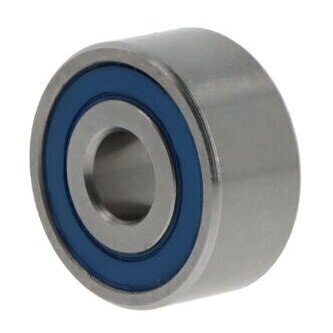

S4205-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 25mm x 52mm x 18mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
SKF Ball Bearings
Solid Unsplit
Buy Now
Qty:
Product Specification
Ball rows
Double row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Polyamide cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
25mm
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
52mm
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
18mm
Reference
S4205-2RS
Additional Reference:
10127797
Quick Order Code
BB-517372
Product Description
The S4205-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a high-performance, corrosion-resistant rotational component designed for demanding industrial and precision applications. Constructed entirely from stainless steel, this double-row bearing offers exceptional durability and reliability in challenging environmental conditions.
Key Features:
- Double row bearing configuration for increased load capacity
- Stainless steel construction for superior corrosion resistance
- Sealed design protects against dust, dirt, and moisture intrusion
- Polyamide cage for lightweight and low-friction performance
- Normal radial clearance for smooth and consistent operation
- Precise cylindrical bore for versatile mounting options
Technical Specifications:
- Dimensions: 25mm inside diameter, 52mm outside diameter, 18mm width
- Material: Stainless steel (both bearing and rolling elements)
- Tolerance class: P0/PN2 / ABEC 1
- Temperature range: -20°C to +120°C
- Sealing: Fully sealed
- No current insulation
Typical Applications:
- Food processing equipment
- Marine and coastal engineering
- Chemical processing plants
- Medical and pharmaceutical machinery
- Automotive and marine components
- Agricultural and outdoor machinery
The S4205-2RS ZEN bearing excels in environments requiring robust, corrosion-resistant rotational components. Its stainless steel construction and sealed design make it ideal for applications exposed to moisture, chemicals, or corrosive substances, ensuring long-lasting performance and minimal maintenance.
