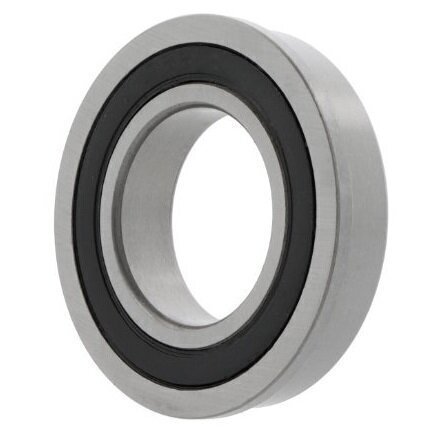

F688-2RS ZEN Sealed Deep Groove Ball Bearing 8mm x 16mm x 5mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
8mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Flange on outer ring
Outside Dia
16mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
5mm
Reference
F688-2RS
Additional Reference:
10126767
Quick Order Code
BB-516914
Product Description
The F688-2RS ZEN Sealed Deep Groove Ball Bearing is a compact, high-performance single-row ball bearing designed for precise and reliable mechanical applications. Engineered with precision and durability, this bearing offers exceptional performance in various industrial and precision equipment settings.
Key Features:
- Compact dimensions: 8mm x 16mm x 5mm
- Single row bearing configuration
- Sealed design for enhanced protection against contaminants
- Cylindrical bore for versatile mounting
- Sheet steel cage for structural integrity
Technical Specifications:
- Inside Diameter: 8mm
- Outside Diameter: 16mm
- Width: 5mm
- Material: Standard bearing steel
- Temperature Range: -30°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Radial Clearance: Normal
- Current Insulation: No
Typical Applications:
- Small electric motors
- Precision machinery
- Office equipment
- Robotics
- Automotive components
- Medical devices
The ZEN F688-2RS bearing provides smooth rotation, excellent load-bearing capacity, and reliable performance. Its sealed design protects against dust, dirt, and moisture, making it ideal for applications requiring minimal maintenance and consistent performance.
