Quick Code: BB-516912

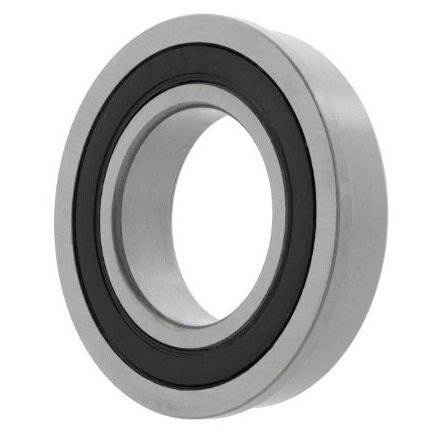

F686-2RS ZEN Sealed Deep Groove Ball Bearing 6mm x 13mm x 5mm
Help Articles
Also Try
A Belts (13mm x 8mm)
Metric Sizes - Dunlop & Budget
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
6mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Flange on outer ring
Outside Dia
13mm
Sealing
Sealed
Temperature range
-30 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
5mm
Reference
F686-2RS
Additional Reference:
10126764
Quick Order Code
BB-516912
Product Description
The F686-2RS ZEN Sealed Deep Groove Ball Bearing is a compact, high-performance precision bearing designed for demanding miniature applications requiring reliable rotational performance in confined spaces. This small yet robust bearing offers exceptional durability and versatility across various precision engineering environments.
Technical Specifications:
- Dimensions: 6mm x 13mm x 5mm
- Bearing Type: Single row deep groove ball bearing
- Bore Type: Cylindrical bore
- Sealing: Sealed (2RS configuration)
- Cage Material: Sheet steel
- Rolling Element Material: Standard bearing steel
- Temperature Range: -30°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Internal Clearance: Normal radial clearance
- Current Insulation: No current insulation
- Outer Ring: Flange on outer ring
Key Advantages:
- Compact 6mm bore size ideal for miniature applications
- Sealed design provides protection against contaminants
- Manufactured with standard bearing steel for durability
- Wide temperature tolerance from -30°C to +120°C
- Precise ABEC 1 tolerance class
Typical Application Areas:
- Small electrical motors
- Precision medical devices
- Robotics and automation equipment
- Computer and office machinery
- Automotive sensors
- Model engineering
- Miniature drive mechanisms
The F686-2RS ZEN bearing combines compact design with robust performance, making it an excellent choice for applications requiring precise, low-friction rotation in restricted spaces. Its sealed configuration ensures protection against dust and moderate contamination, reducing maintenance requirements and extending operational life.
